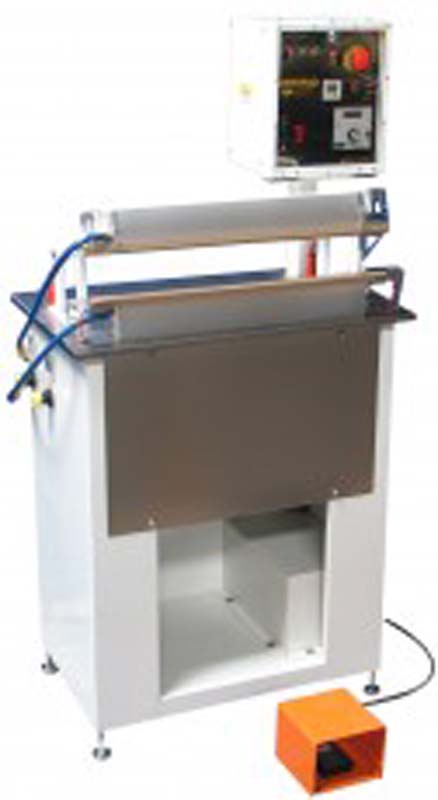

Vertrod OB Med Validatable Medical Pouch Sealer

The Vertrod Medical Open Back sealer is a fully validatable medical pouch sealer designed to comply with the stringent guidelines of ISO 11607 terminally sterile packaging requirements. This pneumatically powered impulse heat sealer is intended for medical and other industrial applications where control of process parameters is critical and seal validation is required. Vertrod validatable medical pouch sealers are capable of producing quality hermetic seals in almost any materials ranging from seal temperatures of 200°F to 650°F. The Vertrod Med OB sealer is equipped with the PAC’s medical control system. It is a precise temperature-based system with in real time monitoring of all sealing parameters for applications requiring seal validation. Built-in alarm functions prevents operation when outside of validated settings. External verification ports in the control cabinet allow for verification and calibration of controllers, a requirement for IQ/OQ processes. The Vertrod Med-OB validatable medical pouch sealer is available in four seal lengths ranging from 14″ to 30″ with a variety of options for flat seals, trim seals, or a combination of both. Standard model features are listed below with a selection of available options. Contact us for more information and details or to discuss custom applications. Vertrod invented the thermal impulse heat-sealing process over half a century ago, and our validatable medical pouch sealers are known for their rugged construction and ability to produce uniform, consistent, airtight seals in a wide variety of materials. Today, all Vertrod sealers are built to the same high standards that earned our reputation for quality nearly 50 years ago. It’s no surprise that many Vertrod thermal impulse heat sealers remain in service after decades of use. The Vertrod name is synonymous with unparalleled durability, service and reliability. The Vertrod Medical Open Backsealer is made in the USA and includes a 3 year limited warranty. Leasing Options from $230/month


  • Sealing Features:
    • Seal Lengths: 14″, 20″, 24″, 30″
    • Seal Width: 5/16″
    • Single heater jaw with opposing pressure jaw (top bar heated)
    • High flow water cool ready heater bar for faster sealing cycles and more consistent cooling temperatures when utilizing water cooling
    • Independent digital seal and cool timers (1.0 – 9.9 seconds)
    • High Pressure sealing capabilities with increased jaw force
    • Incrementally adjustable pressure bar for precise sealing jaw alignment
    • Digital sealing pressure switch with adjustable band to set high and low alarm tolerances
    Temperature Control Features:
    • Temperature controller with digital readout to 350 F (Up to 650 F optionally)
    • Adjustable temperature band for high and low alarm tolerances
    • Seal time begins when set temperature is achieved to prevent inconsistencies with heat build up in sealing jaws
    MedPAC Medical Control Features:
    • ISO 11607 Compliant
    • Fully calibratable pressure switch and temperature controllers
    • Verification ports for easy verification and calibration of internal controllers
    • Real time seal process parameter monitoring (Temperature, Pressure, Time)
    • Alarm function prevents operation when there is a deviation from validated settings
    Safety Features:
    • Pneumatic low-pressure jaw close with release if obstruction is detected
    • Jaw close time out with release when delay is detected
    • Locking control panel cover to prevent unintentional changes in sealing parameters
    • Emergency stop switch accessible through locking control box cover
    • Ported exhaust to pipe outside of clean room and prevent contamination
    • Unobstructed sealing jaws with pass through ability (3″ jaw opening)
    • Machine operation from the front or rear with the ability to rotate the control panel accordingly
    • Stainless Steel tabletop work surface
    • Air Requirement (min): 100 psi
    • Electrical Requirement: 115v standard (230v optional)
    • Dimensions:
      • 14″/20″ Model – 31″ W x 25″ D x 54″ H
      • 24″/30″ Model –





  • Wider seal widths: 3/8″, 1/2″
  • Dual Seals (parallel): 2 x 1/8″, 2 x 3/8″
  • Bi-active jaws (top and bottom heated bars)
  • Hot Wire Trim Seal (Beaded trim seal)
  • Cold Cut Wire Trim
  • Water Cool ready heater bar
  • Stainless Steel Adjustable work shelf
  • Pneumatic Flying Knife cut off
  • Stainless Steel Frame and Cabinet
  • High Temperature Package (350°- 650°F)
  • Dual palm controls, anti tie down
  • Scrap blow-off (with cold wire trim seal only)
  • Water re-circulating package
  • Water Chiller
  • Heavy-duty locking swivel casters
  • Benchtop model
