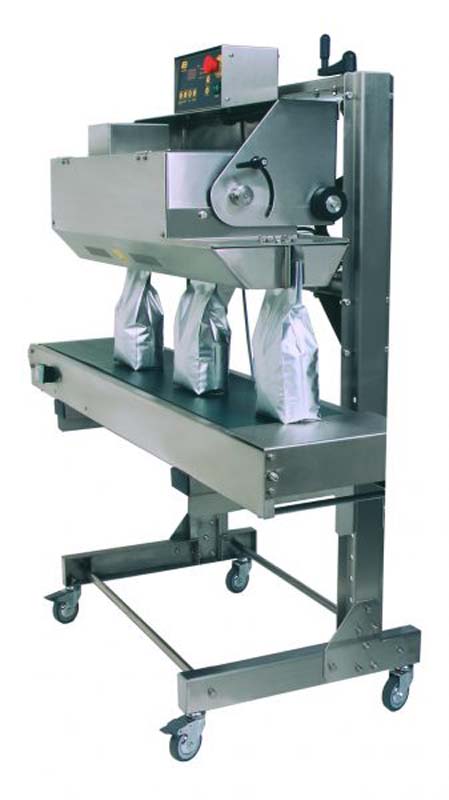

555 Med Validatable Vertical Band Sealer

The PAC 555 Med is a continuous vertical band sealer intended for medical and other critical packaging applications which require precise control of all sealing process parameters. The 555 Med is a fully validatable medical band sealer and is designed to comply with the guidelines of ISO 11607 standards. External verification ports allow for verification and calibration of internal controllers for ease of the IQ/OQ process. The 555 Med features PAC’s real-time monitoring system with alarm lockout function to prevent operation when there is a deviation from validated settings.

This continuous vertical validatable medical band sealer features independent digital temperature controllers for each sealing bar, for optimal seal integrity with Tyvek®, poly, foils, laminates, and a variety of other pouch materials. The 555 Med is adjustable in speed from 150 – 400 inches per minute by a digital speed controller with readout and alarm identification. The sealing head height is cracking adjustable to a position based on the operator, conveyor, and environmental requirements.

The 555 Med is intended for vertical sealing applications, but the head is easily rotated to accommodate horizontal packaging applications as well. The sealing head overhang allows for centering over an existing conveyor or using the integrated conveyor. The 555 Medical Band Sealer is ideal for high-speed medical pouch sealing applications. Features, specifications, and available options listed below.

The 555 Med Validatable Vertical Band Sealer includes a 3-year limited warranty.

Leasing Options from $350/month
Categories:
Supplier:

Features

Set-Up Benefits

  • Quickly dial in sealing parameters and conduct validation

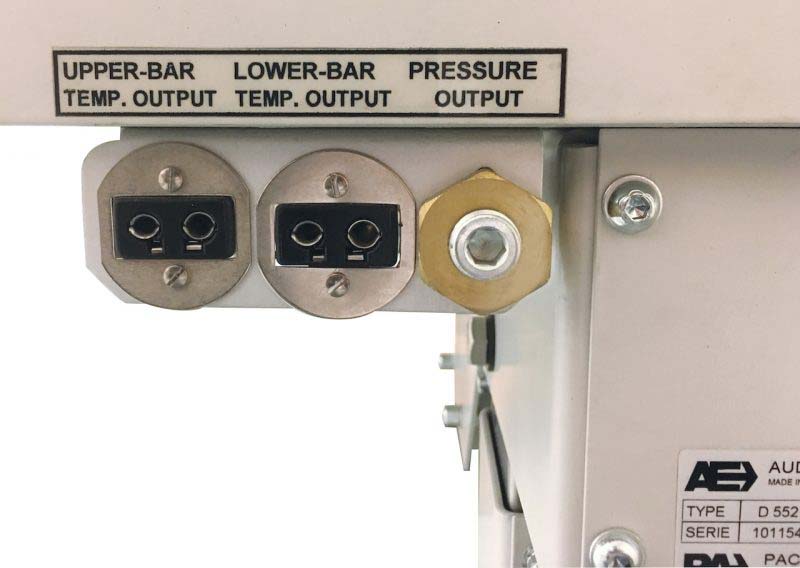

  • Easy access to ports for machine calibration and validation

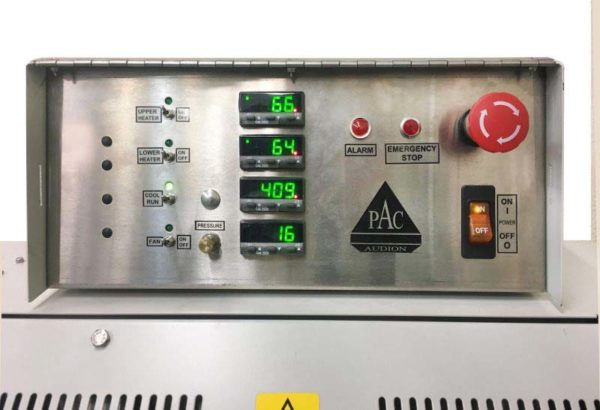

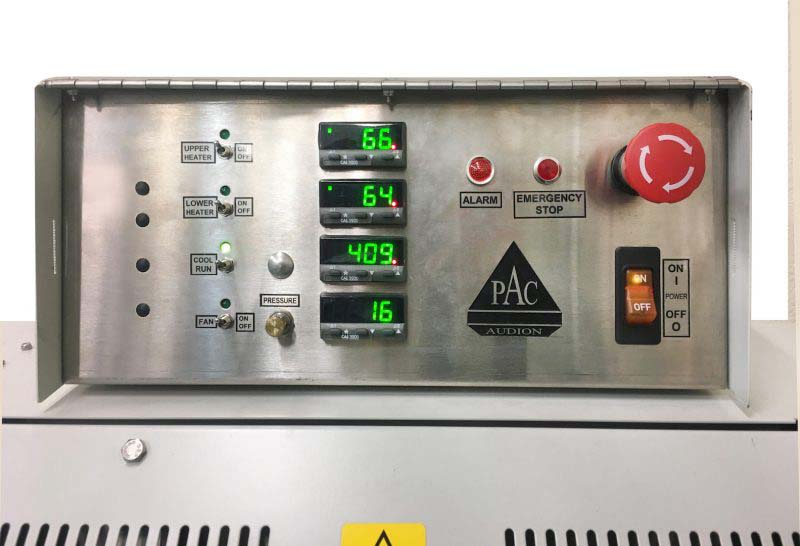

  • Lockable control box cover prevents tampering with settings
  • Adjustable seal pressure on pressure roller as well as heating and cooling jaws
  • Seal speed up to 400 in/min
  • Digital temperature controller with max temperature of 350º F

User Benefits

  • Straightforward user controls help assure excellent results
  • Adjustable sealing head angle for added versatility
  • Lighted alarm and auto-gate feature pause sealer operation if any seal parameters drift out of range

Operating Benefits

  • Precise controls for every function
  • Requires minimal maintenance
  • Ready light indicates operation within the set parameters

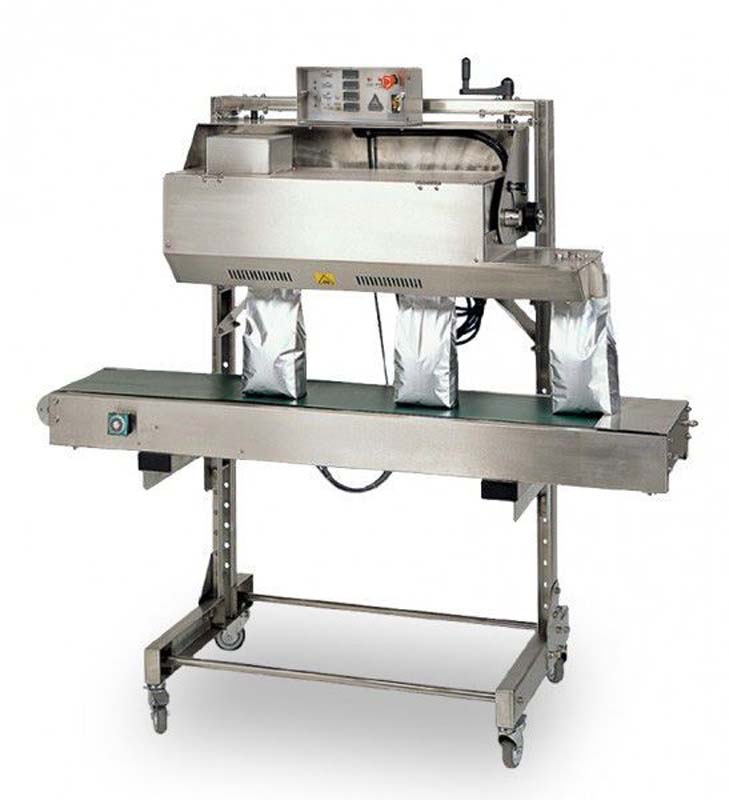

  • 54″ Motorized Conveyor (22lb max weight of product on conveyor)
  • Set seal position from 31” – 44” from the floor
  • Stainless steel frame and cabinet
  • Locking casters add mobility

Safety Benefits

  • Cool run shutdown to lengthen the life of the seal belts
  • Adjustable height for improved ergonomics and ease of use
  • Emergency stop button ensures quick machine shutdown

Specs

Model 555 Band Sealer
Seal Width 7/16″
Max Seal Temp 480º F
Max Seal Speed 400 inches/min
Heater Bar Length 6″
Cooling Bar Length 4.25″
Electrical 120V
Dimensions (WxDxH) 58″ x 24″ x 62″
Weight 280 lbs
Warranty 3 year limited
Country of Manufacture Netherlands

Videos

https://www.youtube.com/embed/KDMGX5Jwh1Q?rel=0 https://www.youtube.com/embed/lANKnlYsp2M?rel=0 https://www.youtube.com/embed/A79LtJQNUGM?rel=0 https://www.youtube.com/embed/Bv2Y02G7fpo?wmode=transparent&rel=0&feature=oembed

Resources

Options

  • Inkjet Printer
  • Hot stamp printer
  • Embosser
