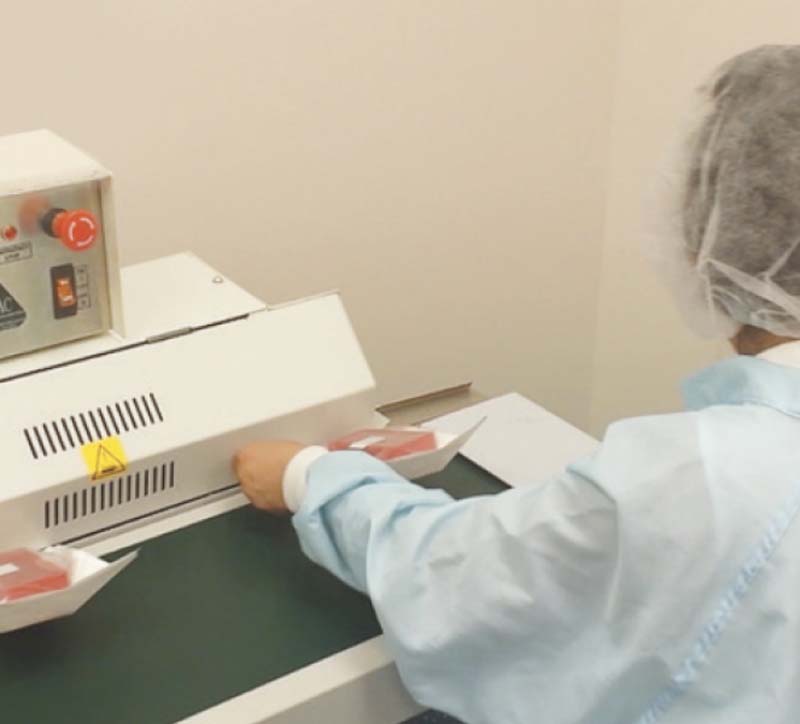

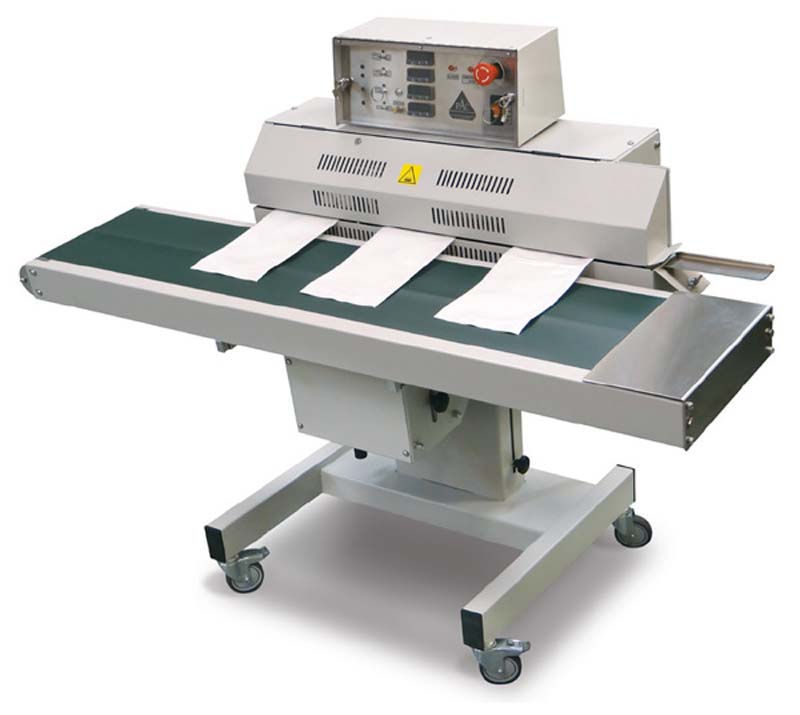

552 Med Validatable Medical Band Sealer

The PAC 552 Med is a continuous horizontal band sealer intended for medical and other critical packaging applications which require precise control of all sealing process parameters. The 552 Med is a fully validatable medical band sealer and is designed to comply with the guidelines of ISO 11607 standards. External ports allow for verification and calibration of internal controllers for ease of the IQ/OQ process. The 552 Med features PAC’s real-time monitoring system with alarm lock out function to prevent operation when there is a deviation from validated settings.

This continuous horizontal validatable medical band sealer features an independent digital temperature controllers for each sealing bar, top, and bottom, for optimal seal integrity with Tyvek®, poly, foils, laminates, and a variety of other pouch materials. The 552 Med is adjustable in speed from 150 – 400 inches per minute by a digital speed controller with readout and alarm identification. The sealing head is height and angle adjustable to a position based on operator and environmental requirements. The integrated conveyor can be adjusted independently of the sealing head to accommodate flat or thick packages. Originally developed in conjunction with a Fortune 500 healthcare firm, the 552 Med is the validatable medical band sealer of choice for high-speed pouch sealing applications.

The 552 Med Validatable Medical Band Sealer includes a 3-year limited warranty.

Leasing Options from $370/month

Tyvek® is a registered trademark of DuPont™
Categories:
Supplier:

Features

Set-Up Benefits

  • Quickly dial in sealing parameters and conduct validation
  • Easy access to ports for machine calibration and validation
  • Lockable control box cover prevents tampering with settings

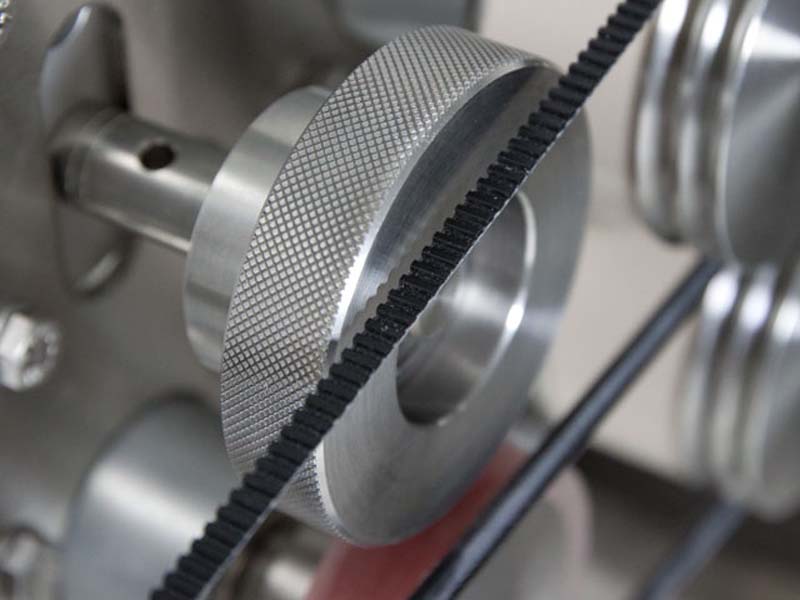

  • Adjustable seal pressure on pressure roller as well as heating and cooling jaws
  • Seal speed up to 400 in/min
  • Digital temperature controller with max temperature of 350º F
  • Conveyor lowers vertically up to 2.5” from the seal position to accommodate thick packages
  • 10” wide conveyor slides out horizontally up to 4” to accommodate long bags
  • Position the seal up to 1.5” down from the top of the bag

User Benefits

  • Straightforward user controls help assure excellent results
  • Adjustable sealing head conveyor for added versatility
  • Lighted alarm and auto-gate feature pause sealer operation if any seal parameters drift out of range

Operating Benefits

  • Precise controls for every function
  • Requires minimal maintenance
  • Ready light indicates operation within the set parameters
  • Set seal position from 28” – 36” from the floor
  • Seal head tilts down up to 30°for processing products with liquids
  • Locking casters add mobility

Safety Benefits

  • Cool run shutdown to lengthen the life of the seal belts
  • Adjustable height for improved ergonomics and ease of use
  • Emergency stop button ensures quick machine shutdown

Specs

Model 552 Band Sealer
Seal Width 7/16″
Max Seal Temp 480º F
Max Seal Speed 400 inches/min
Heater Bar Length 6″
Cooling Bar Length 4.25″
Electrical 120V
Dimensions (WxDxH) 54″ x 25″ x 40″ – 48″
Weight 200 lbs
Warranty 3 year limited
