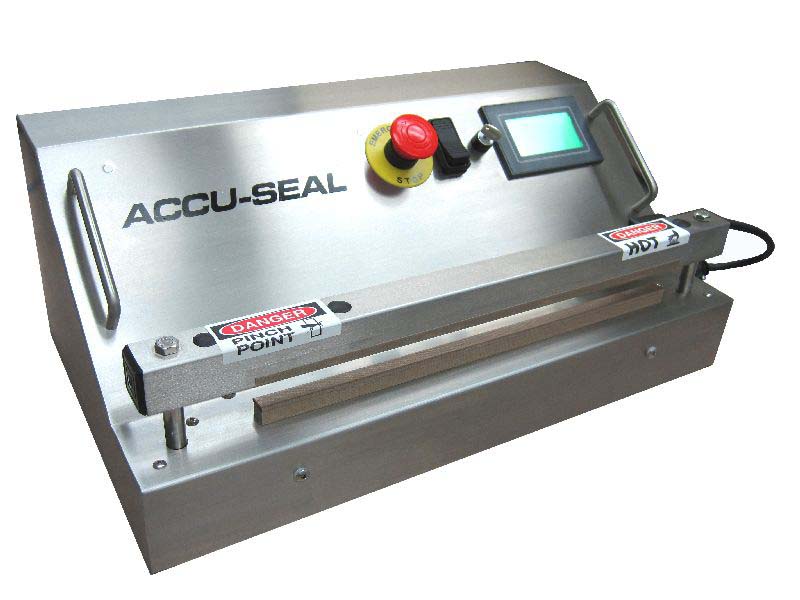

6300SP Validatable Medical Sealer

The Accu-Seal Model 6300SP represents an evolution in our original 6300 validatable sealer, integrating improved features in design, performance and flexibility. Designed specifically for medical device and other critical packaging environments, the 6300SP integrates a larger HMI digital display, a heavy-duty seal bar and actuator assembly, as well as temperature control to meet the most demanding FDA requirements for validation and total control of your packaging process.

Validation
Built to detailed specifications, the 6300SP delivers repeatable, reliable performance with validatable and calibratable across all seal parameters in compliance with ISO 11607. The 6300SP offers unparalleled ease of use during IQ (Installation Qualification), OQ (Operational Qualification), and PQ (Performance Qualification) as well as during change-over and production. It is also available with CE compliance.

Protected
A digital high-speed PLC controller allows for customized programming of seal temperature, time, and pressure. Two-level password protection requires supervisor password override for abnormal seal temperature profile, jaw obstruction and seal pressure. The user can program and save multiple seal recipes for ease of operation and maximum productivity, without compromising process control.
Categories:
Supplier:

Features

Temperature Controlled
Process control and validation.

High Resolution Color-Enhanced Display
Simple and intuitive set-up and operation.

Recipe and Password Protection
Up to 10 recipes settings (standard).
Multi-level password protection to parameter/alarm settings.

Data Acquisition Ready
Collect and download seal data history for analysis and trending.

Multiple Seal Lengths
Available in 15, 20, 25 or 30-inch seal lengths.

Available in Upper or Dual (Upper & Lower) Seal Bar Heating

Improved Safety and Reliability
Dual, independent jaw obstruction sensing and alarm.
DC Control Circuit.
Heavy duty actuator cylinders and seal bar construction.
Display maintains power with E-Stop engaged.

Detachable Power and Foot Pedal Cords

Polished Stainless-Steel Case and Product Tray

Specs

Seal Length 15″, 20″, 25″, 30″
Seal Width 3/8″
Machine Length Seal length + 5.5″
Machine Depth 12″
Machine Height 8″
Aprox. Weight 25 lbs
Power Requirement 120Vac, 7 Amps (15”x3/8”)
Compressed Air Supply Requirement 1.0 CFM @ 80 Psi

Videos

Built-in features

  • Digital, high-speed, PLC controller with LCD
    touchscreen user interface
  • Password protected digital control of:
    • Seal temperature
    • Seal time
    • Seal pressure
  • Calibration ports for:
    • Seal temperature
    • Seal time
    • Seal pressure
  • Alarms: (Require Supervisor Override):
    • Cold seal temperature profile
    • Jaw obstruction
    • Seal temperature (settable High & Low
      limits)
    • Seal pressure (settable High & Low limits)
  • Additional Safety Features:
    • Emergency Stop
    • Safe, low-force jaw close
  • Production enhancing features:
    • Multiple programmable seal recipes
    • High-force seal jaw
    • Upper or Dual Heat
    • NEMA-4, Welded Stainless Steel case
    • Product support tray
    • External exhaust port

Options

  • Data Acquisition System (DAS)
  • Initial calibration
  • 220 Vac conversion
  • Digital line voltage alarm
  • CE certification

Optional Accessories:

  • Ergonomic multi-position stand
