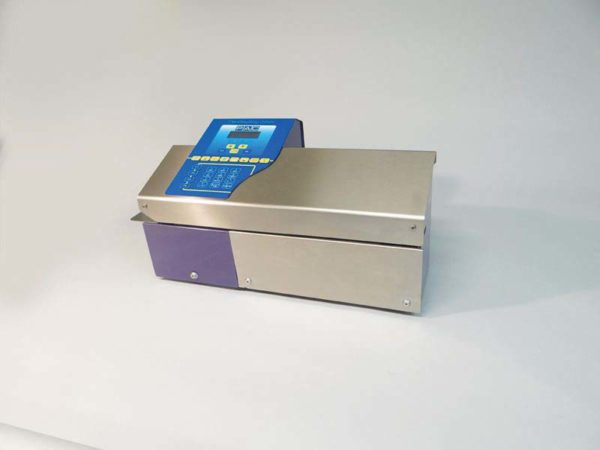

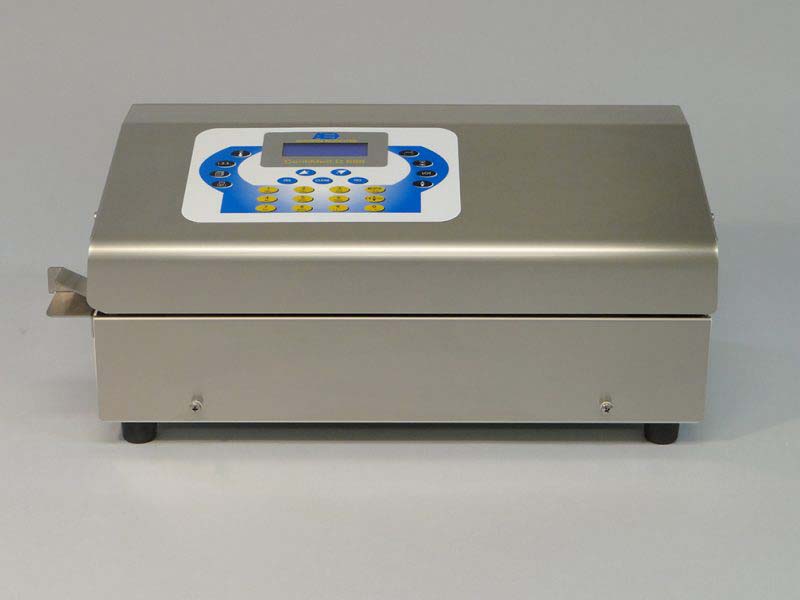

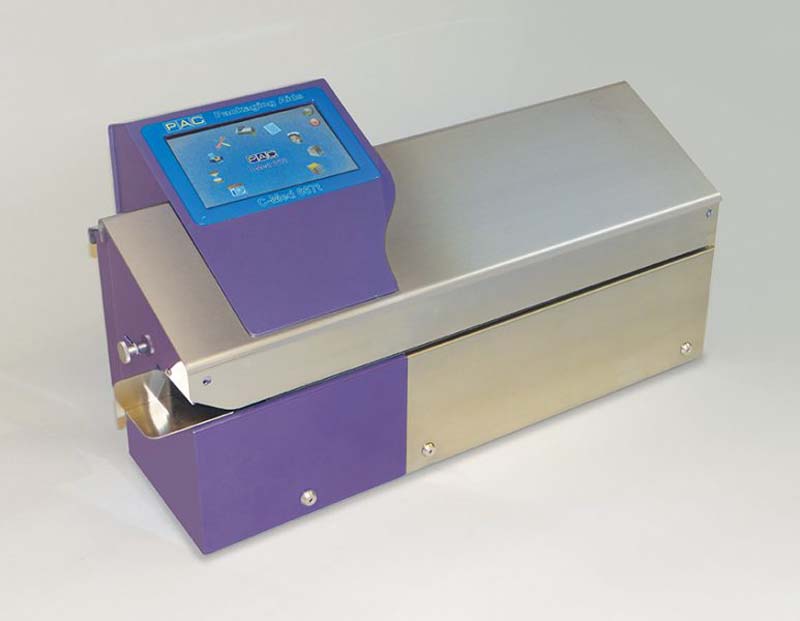

Contimed Validatable Medical Band Sealers

The Contimed family of tabletop, validatable medical band sealers offer a large selection of interface and control designs. These rotary sealers are designed for sealing and coding medical sterilization pouches, with no compressed air required. The versatile contimed sealers are designed to effectively seal various pouch materials and thicknesses. All models feature stainless steel covers and packages move from left to right. For completely reliable validation that is guaranteed the Contimed family of medical sealers are the preferred choice of medical packagers. The Contimed Validatable Band Sealers include a 2-year limited warranty.

Categories: Medical Sealers

Supplier: PAC Machinery

Features

Sealing features

Automatic adjustment of sealing pressure
Photocell controlled start signal
1/2” Wide Seal, 5 lines
Adjustable bag guide for consistent seal positioning
Temperature controller with digital readout to 200ºC
Audible alarm and block when seal parameters are not met
Ports for USB and ethernet connectivity
Designed to effectively package medical devices in a variety of bag materials

Specs

Contimed Model	D665	D666	D667	D667T/D775
Seal Width	1/2″, 5–line	1/2″, 5–line	1/2″, 5–line	1/2″, 5–line
Validatable	Temperature	Temperature Speed Pressure	Temperature Speed Pressure	Temperature Speed Pressure
Seal Speed (max)	385″ /minute	385″ /minute	385″ /minute	385″ /minute
Seal Temp. (max)	200ºC	200ºC	200ºC	max. 200ºC
LCD Display	Touchpad, 2–line digital display	Touchpad, 4–line digital display	Touchpad, 4–line digital display	Touchscreen
Internal Matrix Printer		9 dots, 80 characters	18 dots, 2 lines, 120 characters	18 dots, 2 lines, 120 characters, barcodes
Connectivity		2 USB ports, Ethernet	2 USB ports, Ethernet External Lan Traceable	2 USB ports, Ethernet External Lan Traceable
Batch Counter
Dimensions (W x D x H in)	22 x 11 x 9	22 x 11 x 9	25 x 12 x 13	25 x 12 x 13
Electrical	115v, 60Hz 230v, 50Hz special order	115v, 60Hz 230v, 50Hz special order	115v, 60Hz 230v, 50Hz special order	115v, 60Hz 230v, 50Hz special order

Videos

Resources

Options

Options

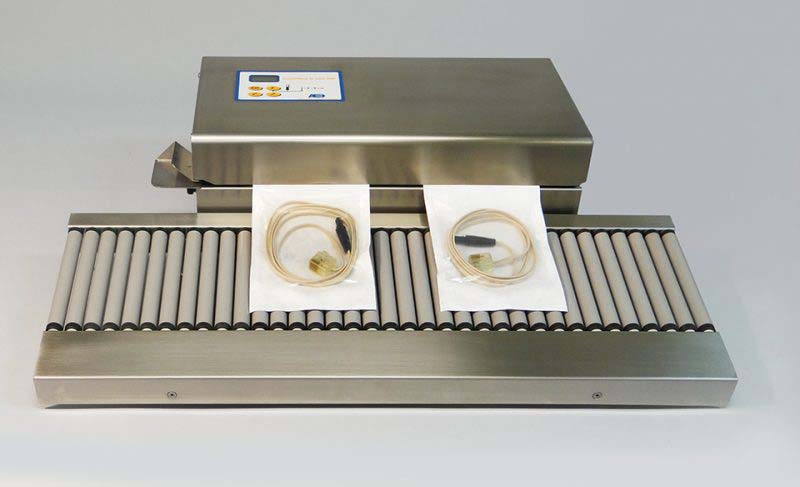

Roller support shelf available for all models for enhanced rotary sealing
