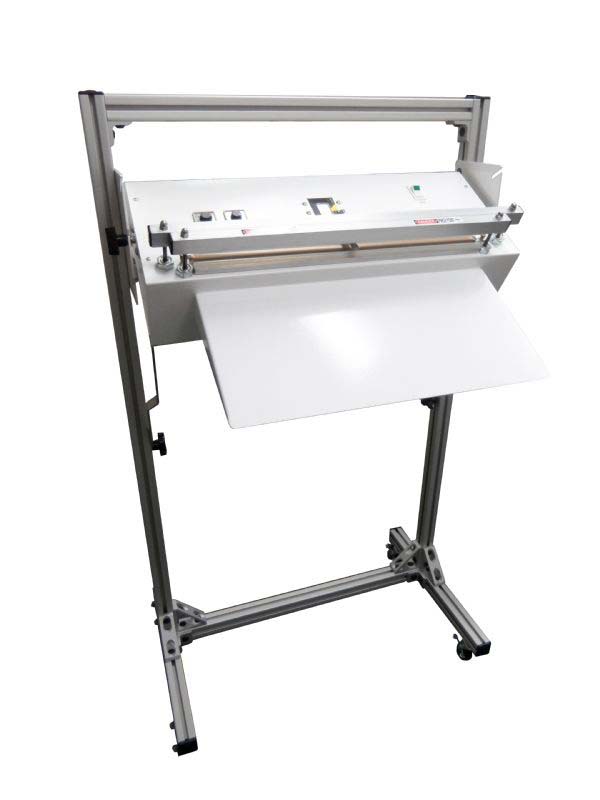

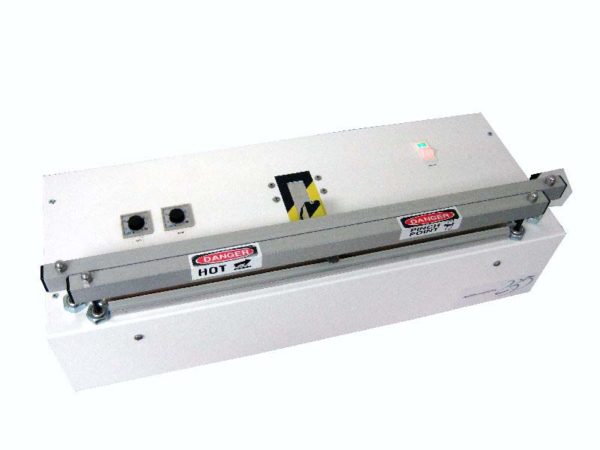

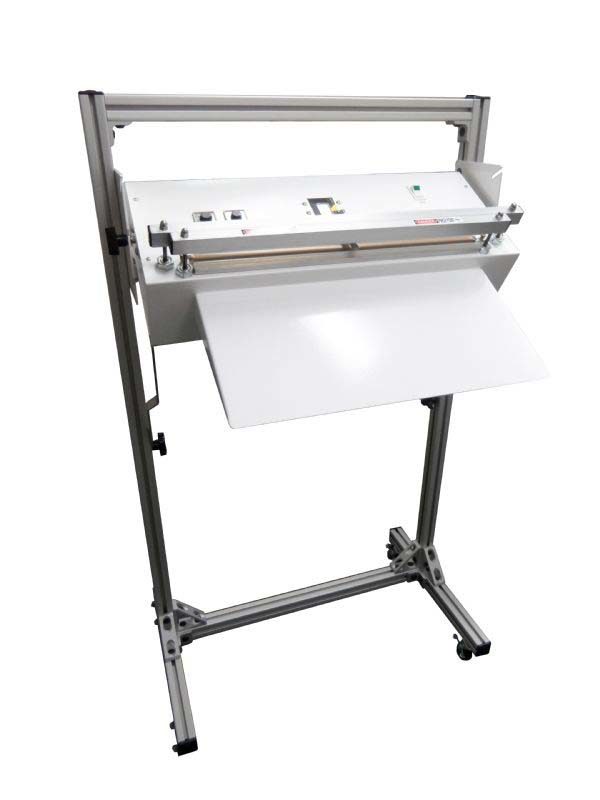

Model 235 Budget Vacuum Sealer

The model 235 is an impulse heat vacuum sealer designed for the user that wants to get the job done without paying an arm and a leg. Perfect for vacuum sealing a wide variety of pouches from lightweight polyethylene to barrier bags. Built with high quality components, clean design and tough construction this vacuum sealer provides affordable, dependable performance for packaging your  vacuum products. 235 Data Sheet The model 235 is an impulse heat vacuum sealer designed for the user that wants to get the job done without paying an arm and a leg. Perfect for vacuum sealing a wide variety of pouches from lightweight polyethylene to barrier bags. Built with high quality components, clean design and tough construction this vacuum sealer provides affordable, dependable performance for your vacuum packaging your products.
Supplier:

Features

Cleanroom Features:

  • Non-Particle Generating Venturi Vacuum System
  • Clean Design (To class 1000)

Built-In Features:

  • 10 Second Heat Timer
  • 60 Second Cooler Timer
  • Electronic Foot Switch Vacuum/Seal Activator
  • Retracting Nozzle
  • Thermal Overload Protection

Requirements:

  • Power: 120 Vac, 3 Amps
  • Air: 1.75 CFM @ 80 PSI

Specs

Size:

  • Length: 25.5″
  • Width: 10″
  • Height: 9″
  • Approx. Weight: 25 lbs.
Seal Length20″
Seal Width1/8″ Standard (other seal widths and styles available
Vacuum PressureUp to 26 in Hg
Suction Flow.85 CFM
Machine Length25.5″
Machine Width10″
Machine Height9″
Approx Weight25 lbs.
Power Requirements120 Vac, 3 Amps
Air Requirements1.75 CFM @ 80 PSI

Videos

Resources

Options

Factory Options:

  • Vacuum Gauge
  • Water Trap Filter
  • Elements: 1/4″, Beaded Band
  • Isolated Exhuast Port
  • 220 Vac Conversion
  • CE 1/4″ element model only
