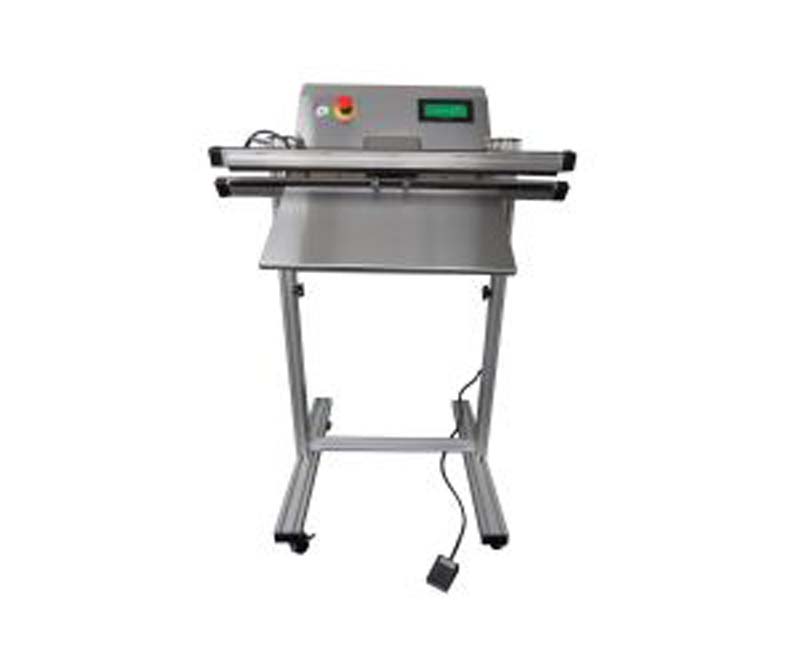

675TC Temperature Controlled Vacuum Sealer with Gas Purge

The 675TC is a Temperature controlled Vacuum Sealer with gas purge. Total process control of medical and pharmaceutical packaging.
Supplier:

Features

Performance
The New 675TC delivers equivalence throughout your
facility with repeatable, reliable performance. The 675TC
vacuum sealer is designed for packaging moisture
and oxygen sensitive products. Built in features offer
flexibility, protection and performance.
To further enhance production the machine is available
with a dual-heat option. The vacuum sealer is easily
mounted on an ergonomic machine stand or can be
placed on a tabletop.

Process Validation
Fully lock out protected, alarmed, digital process control.
The user friendly LCD touch screen and high speed PLC
provide the confidence that all process parameters are
maintained seal-to-seal. External verification ports offer
ease of calibration.

Technology & Innovation Built-In
Password protected digital control of all seal parameters,
five operating modes, six seal Process recipes, visual &
audible alarms and calibration screens. Stainless steel
cases withstand harsh environments and resist the effects
of biocides.

Safety
Standard Safety features include Safe Low Pressure Jaw
Close, Emergency Stop Button, Internal ‘Coyote’ high
temperature limit, and thermal overload protection.

Customer Service
Our sales and technical support teams are ready to
assist you when you call. “Talk to a real person”, not
voicemail, about your application, establishing seal
parameters, maintenance or technical support, custom
projects or parts and service. “We’re listening.”

Built-to-Last Reliability
Accu-Seal machines are designed and built with the
highest quality components and manufacturing techniques
to ensure unmatched product quality and many years of
reliable, trouble free service. Accu-Seal machines are all
designed for easy installation, operation and
maintenance.

Two-Year Limited Warranty
We are confident with the quality and reliability of our
products and offer a Two-Year Limited Warranty for most
Accu-Seal machines. For further details please contact
the Accu-Seal Sales Department. Accu-Seal machines are
designed and manufactured with pride in the USA.

Built-in Features

  • Full Digital, High-Speed, PLC Controller with
    Color enhanced LCD Touch screen HMI.
  • Password protected digital control of:
    • All Seal parameters; temperature, time, pressure
    • 6 Seal Process Recipes
    • Alarm Settings
    • Calibration Screens
  • 5 Selectable Operating modes:
    • Gas-Vac-Seal (1-99 cycles)
    • Vac-Seal
    • Seal Only
    • Vac-Gas-Vac-Seal
    • Vac-Gas-Seal (1-99 Cycles)
  • Visible and Audible Alarms:
    • Cold Seal Temperature Profile
    • Jaw Obstruction
    • Seal Temperature with Settable High & Low Alarms
    • Seal Pressure with Settable High and Low Alarms
  • Stainless Steel Enclosure
  • Gas Purge Standard
  • Retracting Vacuum Nozzles
  • Standard 3/8” wide Upper Heating elements
  • Electronic Footswitch Activator
  • External Verification Ports for Calibration of:
    • Seal Temperature
    • Seal Time
    • Seal Pressure
    • Vacuum Pressure

Specs

Seal Length 20″, 25″, 30″
Seal Width 3/8″
Vacuum Pressure up to 26in HG standards
Heat Upper Heat Only (Standard)
Seal Bar Length Seal length + 4”
Machine Depth 13″
Machine Width 20″
Machine Height 8″
Approx Weight 65 lbs
Power Requirements 120V, 20A / 220V, 10A
Air Requirements 2.5 CFM @ 90psi

Safety Features

  • Emergency Stop
  • Safe Low Pressure Jaw Close
  • Internal ‘coyote’ high temperature limit
  • Thermal overload protection

Options

  • Dual Heat (Selectable Dual or Upper Heat Only)
  • Product Support Tray
  • Vacuum Moisture & Particle Filter
  • 220VAC
  • CE Certification
  • Initial Calibration
  • Exhaust Silencer
  • Multi-Position Machine Stand

Cleanroom Features

  • Non-Particle generating Venturi Vacuum System
  • Isolated Exhaust Ports
