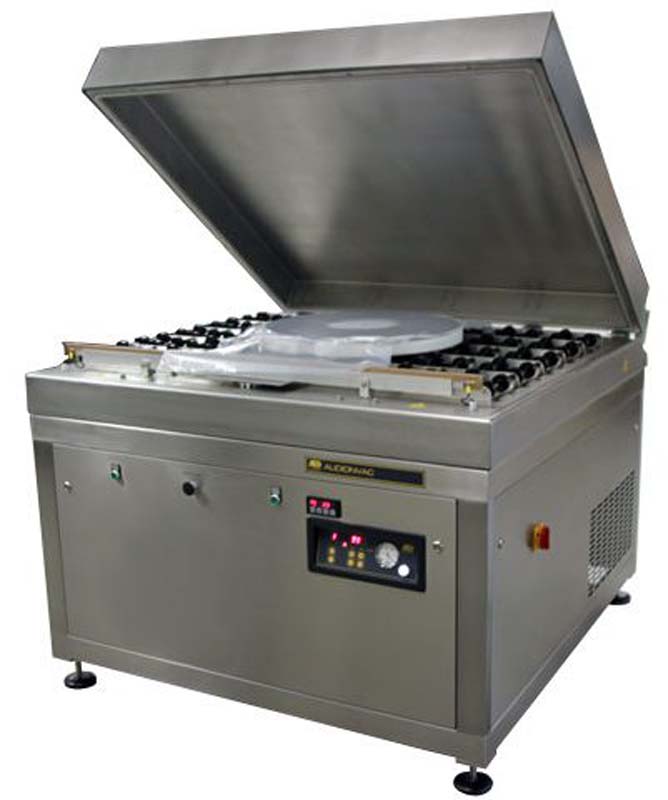

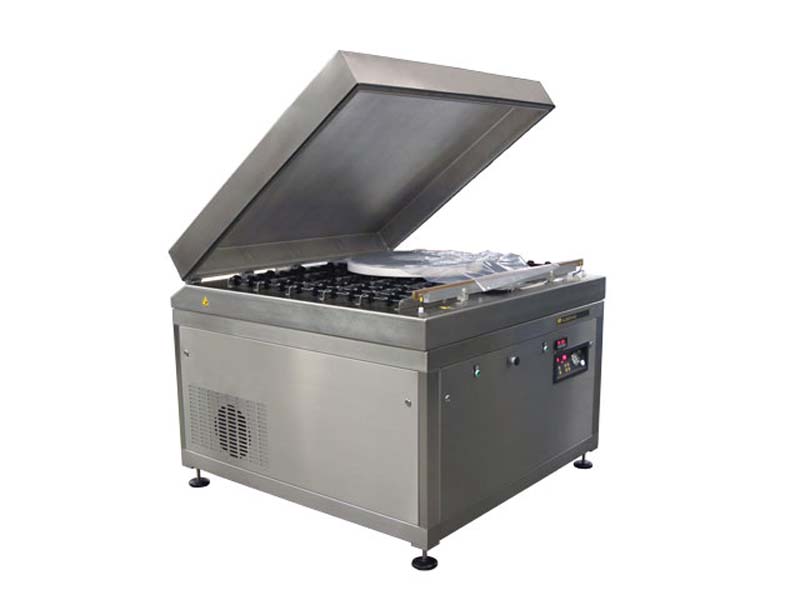

Audionvac VMS 1403 Extra Large Chamber Vacuum Sealer

The Audionvac VMS 1403 is an extra large chamber vacuum sealer designed to package heavy, flat products. The chamber bed includes a roller conveyor to transition product through the chamber easily. The sealing system includes temperature control to seal heavy foils, kraft paper, poly-nylons, and mil-spec bags to ensure quality seals consistently. Push-button pneumatic lid operation further reduces operator interaction and fatigue. The VMS 1403 offers the highest levels of vacuum and is ideal for preservation and protection of products. Touchpad controls are easy to navigate and allow for storage of 9 programs.
Supplier:

Features

User Benefits

  • Smooth, stainless steel chamber and lid is easy to clean

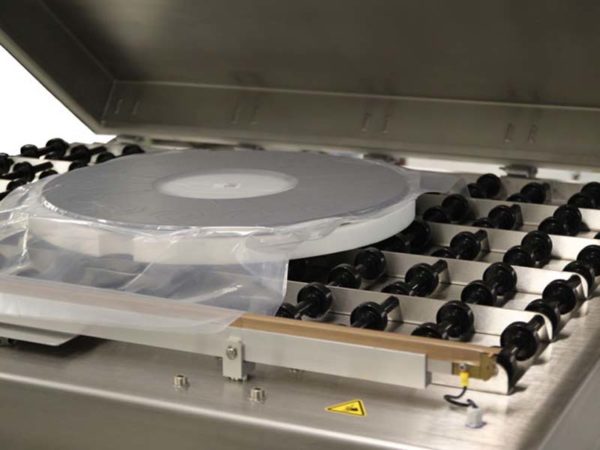

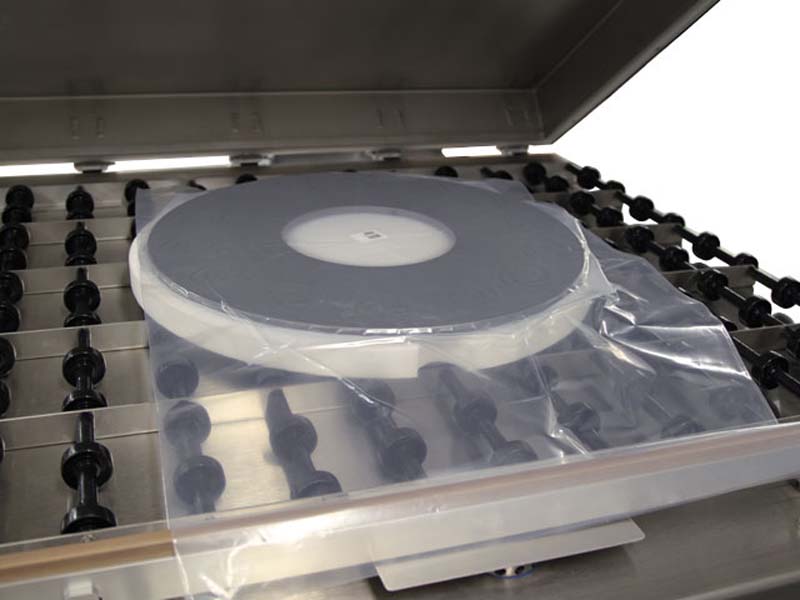

  • Roller conveyor in chamber bed to transition heavy products (non-motorized)
  • Pneumatic lid with push button activation
  • Super dependable with an excellent return on investment
  • Industry-leading 3 year limited warranty

Set-up Benefits

  • Logical, user friendly controls with 9 program job storage
  • Easy to read display
  • Temperature controlled seal to accommodate heavy, thick, or gusseted bags

Operating Benefits

  • Use with pre-made vacuum bags
  • Powerful Busch vacuum pumps
  • Digital controls for fast adjustment
  • Very low residual oxygen level
  • Soft air return to protect delicate products

Safety Benefits

  • Designed to meet CE requirements
  • Stop button to interrrupt the cycle at any point
  • Digital vacuum pump maintenance program

Specs

ModelVMS 1403
Seal Type (in)5/16” Flat Seal
# of Seal Bars1
Seal Bar ConfigurationFront Sealing Bar
Seal Length (in)51” Long
Chamber Dimensions (in)55” Wide x 51” Deep
Chamber Height (in)5.5”
Chamber TypeStainless Steel
Lid TypeStainless Steel
Vacuum PumpBusch 300 (12 HP)
Electrical230V 3Ph 60Hz
Air80-100 psi
Dimensions (W x D x H in)60″ x 59″ x 55″

Videos

Resources

Options

  • High Lid (8″ Clearance)
  • Vacuum Level Sensor
  • 3/16″ Bi-active seal
