Medical Validatable Vacuum Chamber Sealers

Sealing Features:

Seal Length: depends on the specific Audionvac model
Seal Width: 5/16″

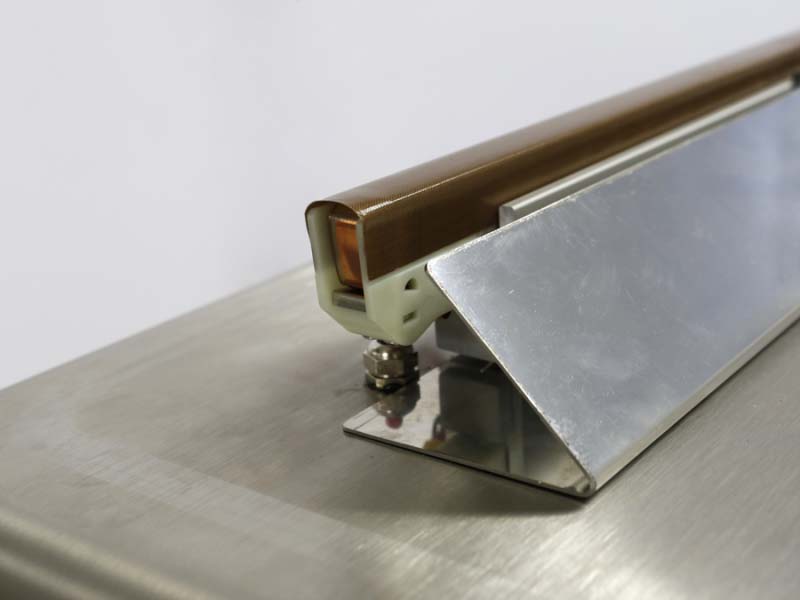

Bi-active sealing jaws (top and bottom heated jaws)
Pneumatically operated sealing jaw for high pressure sealing
Sealing Time: Max 20 seconds
Temperature controlled to 350°F

Vacuum and Gas Flush Features:

Busch Vacuum Pump (size varies by chamber model)

Dual gas flush nozzles with bag gripper to maintain bag position on the sealing bar (optional)

Sensor controlled vacuum pressure and gas pressure with monitoring to detect any deviation

Medical Validatable Control Features:

ISO 11607 Compliant

Monitoring of process parameters with alarm function and cycle abort if deviation from validated settings occurs (seal temperature, seal pressure, vacuum pressure, and gas pressure)

Seal time begins when set temperature is achieved to prevent inconsistencies with heat build-up in the sealing jaws, ensuring repeatable seals.

User Benefits:

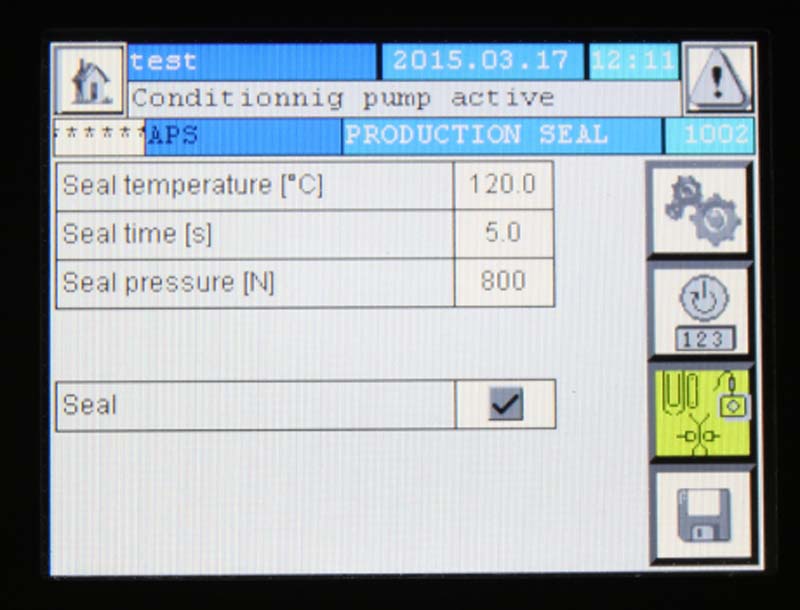

PLC with touchscreen HMI

Data logging with export capability to PC via USB drive

Controlled access level with password protection

Easy to operate, cycle automatically begins when chamber lid is closed

Versatility:

Stainless steel construction (VMS models) to mitigate particle contamination

Chamber filler plates to accommodate various pouches and product thicknesses

Designed to effectively vacuum package medical devices in a wide variety of bag materials
Supplier:

Features

  • Calibration with certificate
  • 220 volt operation
  • Gas flush with multi-cycle (multiple vacuum / gas cycles)
