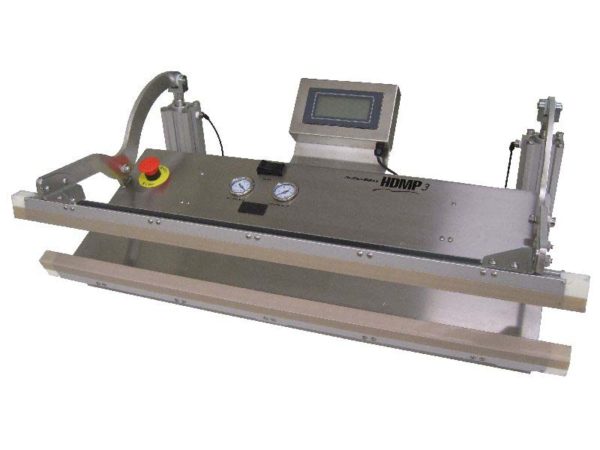

HDMP3 Heavy Duty Impulse Heat Sealer

HDMP3 Series Impulse Heat Sealers have the power and control it takes to handle virtually any sealing application. Dual side or single side heavy duty heat sealing bars in seal lengths up to 60”. These heavy duty sealers have digital operator interface and PLC control.

Laser cut and welded stainless steel enclosure allows for complete cleaning and sterilization for harsh environments of the industrial, food, chemical, and electronics packaging industries. Heavy-Duty Impulse Heat Sealer, 20″ to 60″ seal lengths.
Categories:
Supplier:

Features

Specs

Seal Length – Small Body 20″, 25″, 30″
Seal Length – Large Body 35″, 40″, 50″, 60″
Seal Width 1/4″ standard
Machine Length Seal length + 4″
Machine Width 14″
Machine Height 12″
Suction Flow – Small Body vacuum models only
Suction Flow – Large Body vacuum models only
Power Requirements 120Vac, 20Amps / 220Vac, 10Amps
Air Requirements – Large Body [email protected]
Air Requirements – Small Body [email protected]
