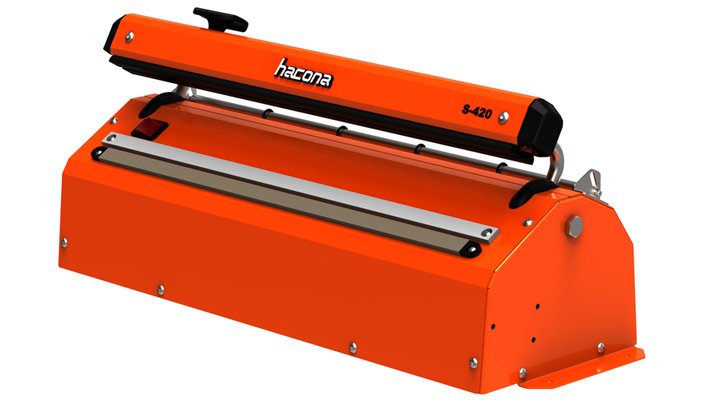

Impulse sealer – S-Type

A specially developed sealing wire tensioning system ensures that the sealing wires are constantly tensioned at any sealing temperature at the right level. This ensures extreme wear resistance for the sealing wire and PTFE coating (wear parts) and further a smooth, beautiful sealing.
Categories:
Supplier:

Features

  • Manufactured in five sealing widths – 320, 420,
    620, 820 and 1020 mm.
  • Easy to operate in a variety of applications.
  • Electrically controlled and independently
    adjustable sealing and cooling times.
  • Integral sealing wire tensioning system for
    perfect sealing result.
  • Integral safety film cutter.
  • Designed to seal filled bags and produce bags
    from rolls.

Technical Data

Technical Data S S SD S SD SB S S
320 420 620 820 1020
Max. sealing length (mm) 320 420 620 820 1020
Sealing width (mm) 5 5 2 x 5 5 2 x 5 5 5 5
Max. sealable film width (mm) 310 410 610 810 1010
Max. cutting width (mm) 310 410 610 810 1010
IP protection class (IP) IP 23
Electrical connection (V, Hz) 230V, 50/60Hz
Max. power consumption* (W) 500 450 650 350 500 500 1000 950
Dimension (LxWxH), sealer (mm) 505 x 206 x 255 605 x 206 255 805 x 206 x 255 1005 x 206 x 255 1205 x 206 x 255
Dimension (LxWxH), complete** (mm) 525 x 553 x 1085 625 x 553 x 1085 825 x 553 x 1085 1025 x 553 x 1085 1225 x 553 x 1085
Weight, sealer (kg) 11.70 13.20 15.20 16.50 18.50 23.20 25.95
Weight, complete** (kg) 23.60 26.20 28.20 31.50 33.50 40.10 45.15

* while sealing (in standby mode, power consumes is 20 W for all types)

** includes stand, foot pedal and working table

Accessories

  • Support with foot pedal and film roll holder
  • Working table with Standard Bag Support
  • Aluminium table arm for pack weights above 5 kg
  • Mobile Film Roll Holder with split roll function
  • Mobile Foot Pedal with flexible connector cable
  • Security Coding – Individual text (3mm height)
  • Sealing wire with integrated cutting wire

Machine Functions

S-Type : 5 mm sealing (up to 500µm)

SD-Type : 2 x 5 mm sealing (up to 500µm)

  • Suggested for sealing dusty or contaminated bags
  • Two parallel sealings next to each other

SB-Type : 2 x 5 mm sealing (up to 500µm)

  • Suggested for sealing very thick bags
  • Sealing from two sides (upper and lower sealing)
