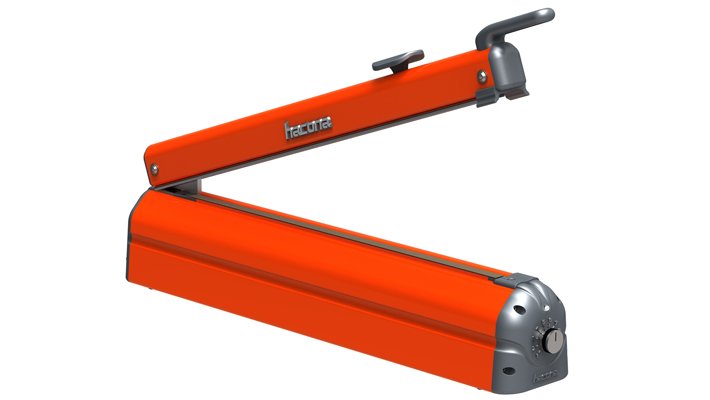

Impulse Sealer - C-Type

The hacona C – type impulse heat sealing machines are produced in 5 different sealing bar length. This wide product range assures the maximum flexibility to choose the right machine size for the right application. For small bag sizes the C – 220 impulse film sealing machine offers best place saving solution. If all kind of different bag sizes are used in the packaging, than the C – 820 offers the most flexible solution, because all bag sizes can be sealed on one machine.

What can we do for you today?

Ask us about specs, optional features, compliance, shipping requirements, suppliers... anything, really.
Need a price? We'll provide a quick quote, plus a range of other compatible options, if applicable.
Support from our experts. Tell us a bit about your project, we'll make sure it's the right product for you!
A response in 24 hours. Every time. We understand that quick lead times matter to you.

Get information about this product

Name*
Company Name*
Phone*
Email*
Country
State
Province
Question*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Name
This field is for validation purposes and should be left unchanged.

Categories: Bag Sealers

Supplier: Hacona

General Information

All hacona film sealing machines, including the hacona C – type are designed to seal also narrow packaging films with a wide sealing bar size! Example: With a C – 820 impulse film sealing machine it is possible to seal very narrow, even 50 mm (2 inches) or 100 mm (4 inches) wide packaging film. No mechanical adjustments are needed to work with 50 mm (2 inches) or even with the 820 mm (32 inches) packaging film.

Types

Machine type	Sealing length (cm & inch)	Power (W)
C – 220	220 mm = 8 inch	180 W
C – 320	320 mm = 12 inch	218 W
C – 420	420 mm = 16 inch	248 W
C – 620	620 mm = 24 inch	365 W
C – 820	820 mm = 32 inch	468 W

Sealable Maximum Material Thickness

PE Polyethilene 200 micron
PP Polypropylene 200 micron
Multi layer – laminated film 100 micron (depending on the type of the lamination!)
