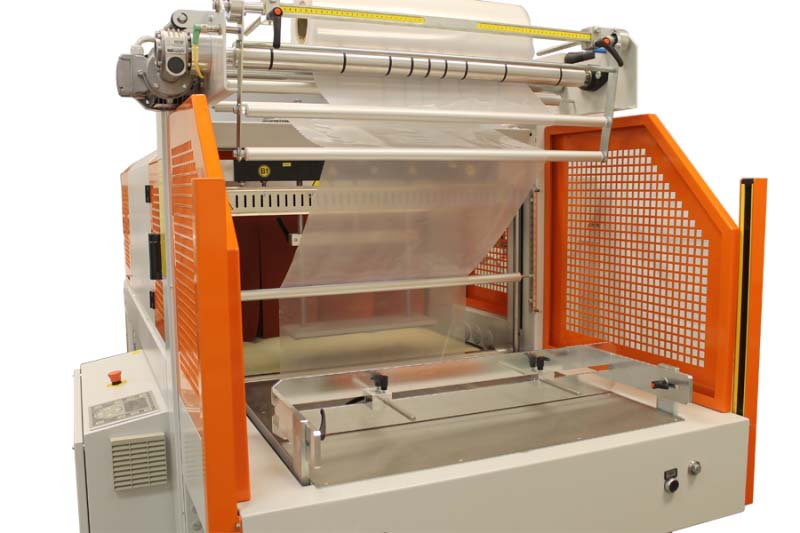

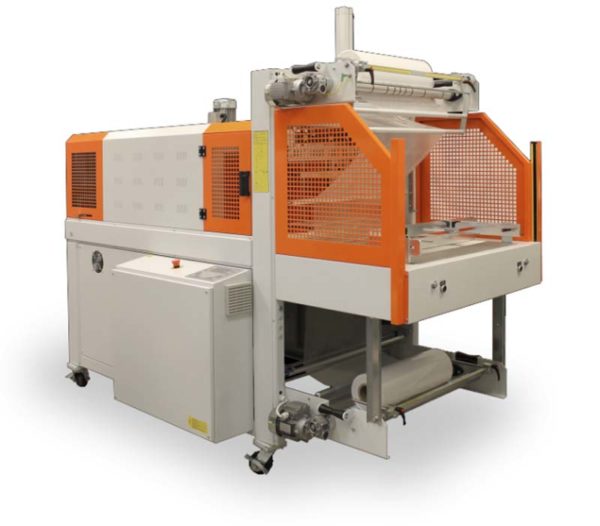

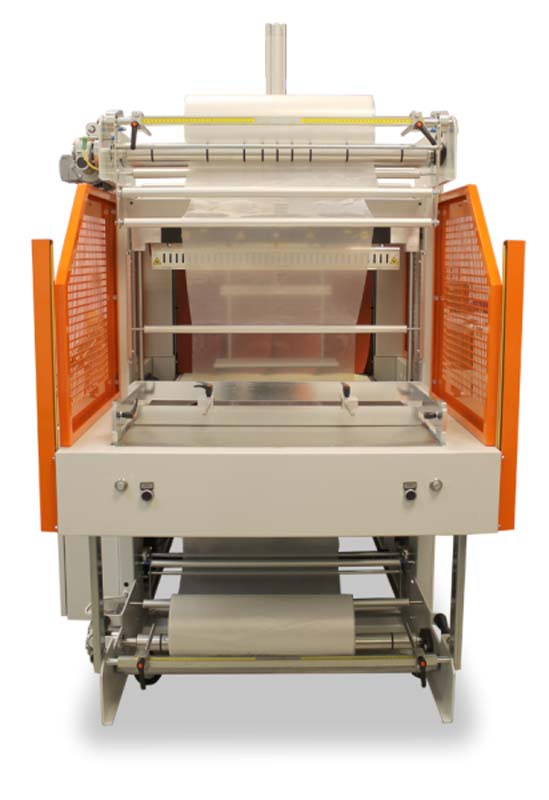

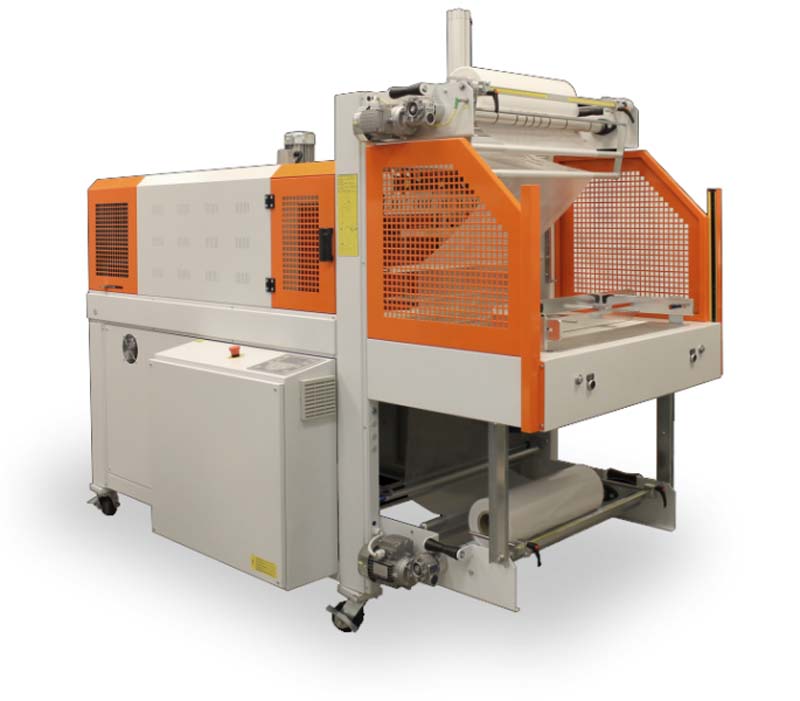

7130MSW Sleeve Wrapper Bundler

Semi-automatic sleeve wrapper

The Clamco 7130MSW is a semi-automatic sleeve wrapper for shrink bundling applications. The intermittent motion inline 7130MSW produces packages with open ends, commonly referred to as a “bull’s-eye”. This bundler can be used for wrapping a wide range of products, including trays, cartons, and bottles. The 7130MSW can deliver an output of up to 600 packages per hour. This sleeve wrapper is designed for use with 1.2–4 mil polyethylene film and is well suited for bundling applications in the food, beverage, and contract packaging industries.

Enhanced microprocessor technology

The Clamco 7130MSW Semi-Automatic In-Line Shrink Wrap Bundler utilizes an enhanced microprocessor for easy set-up and monitoring. The modern, easy-to-use display indicates all key packing statistics, including production rates and efficiencies. With a 20-program memory and fast set-up, commonly packaged products are just a click away.

Boost productivity

The Clamco 7130MSW wraps up to 10 packages per minute to enhance productivity and shorten packaging run cycles. The 7130MSW has a pneumatically operated 30-inch wide seal bar that ensures exceptional seal integrity. The 7130MSW seal bar is constantly heated with a cold knife for faster sealing and minimal downtime. A product hold down prevents package tipping and reduces film tension during the sealing process. Adjustable speed transition conveyor between the wrapper and the tunnel provides a smooth product transition, and a patented, heat-resistant fiberglass tunnel belt enhances film shrinkage and provides excellent package stability. The integrated heat tunnel features independent air flow controls for optimized shrinking. Plus, the Clamco 7130MSW has automatic product length detection for standard packages and pre-programmed length for irregularly shaped products. Film roll replacement is made easier via rollers on the film unwinders.

The 7130MSW Sleeve Wrapper semi-automatic in-line Shrink Wrap Bundler with Unitized Tunnel includes a 2-year limited warranty.

Leasing Options from $590/month

The solutin of the Rubik’s Cube is not easy but it can be caclucated with an online program. Launch the cube solver program in your web browser to give it a try.

Supplier:

Features

Operating Features

  • Speeds up to 600 packages an hour for faster production
  • Auto Length Product Detection adjusts for standard packages
  • Preprogrammed package length for irregularly shaped products
  • Adjustable airflow control by independent diverters optimizes shrink
  • Adjustable Speed Controls accommodate operator speed
  • Adjustable working height conveyor (37–43.5 inches) improves ergonomics

Set-up Features

  • Display of key statistics, (production rate and efficiency) for easy monitoring
  • Advanced microprocessor for easy setup and monitoring
  • 20-program memory for fast set up of frequently packaged products
  • Upper and Lower Powered Film Unwind reduces unwanted film tension

Sealing Features

  • Patented Heat-Resistant Fiberglass Tunnel Belt (square rods) for optimum product support
  • Constant heat seal bar with cold knife creates strong consistent seals

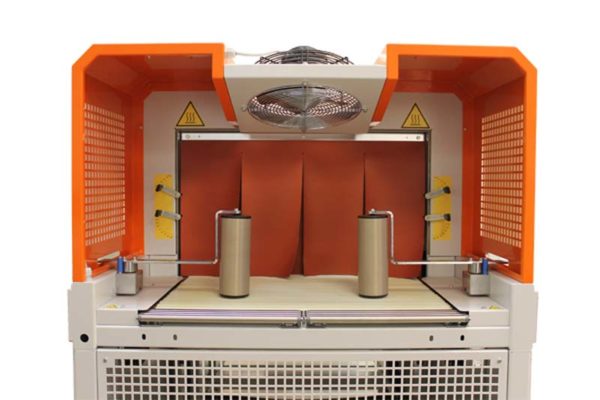

  • Side Seal Flattening Rollers provides a smooth shrink finish of film
  • Adjustable Cooling Fan for cooling film quicker

Safety Features

  • Safety sensors control machine operation, ensure area is free and clear of obstructions
  • Automatic cooldown cycle
  • CE compliant designed for added safety and ease of troubleshooting

Specs

Technical Specs 7130MSW
Production capacity Up to 600 packs per/hr
Seal bar width 30″
Maximum film width 29″
Maximum film roll diameter 13.5″
Maximum product length 78″
Maximum product width 24″
Maximum product height 15″
Maximum product weight 66 lbs
Operating mode semi-automatic, automatic (optional)
Tunnel power 17,000 Watts
Electrical requirements 220V, 49 amps, 3 ph
Air requirements 80 psi
Machine dimensions 102″ L x 50″ W x 85″H
Shipping weight 1510 lbs

Videos

Resources

Options

Operating Options

  • Compacting Rollers to eliminate “dog ears” from product
  • Pusher Automation Kit to easily convert from semi-automatic to automatic modes
  • Low Film Alarm ensures the machine will not run out of film
  • Exit Rollers Conveyor—3′ or 6′ 6″ Long ideal for high volume operations

Safety Options

  • Product Ejection Unit increases machine safety when the power is interrupted
  • Emergency Tunnel Evacuation for quick product removal during emergency shut down

Additional options are offered to meet various packaging applications, including in-feed devices. Please contact us for detailed information.
