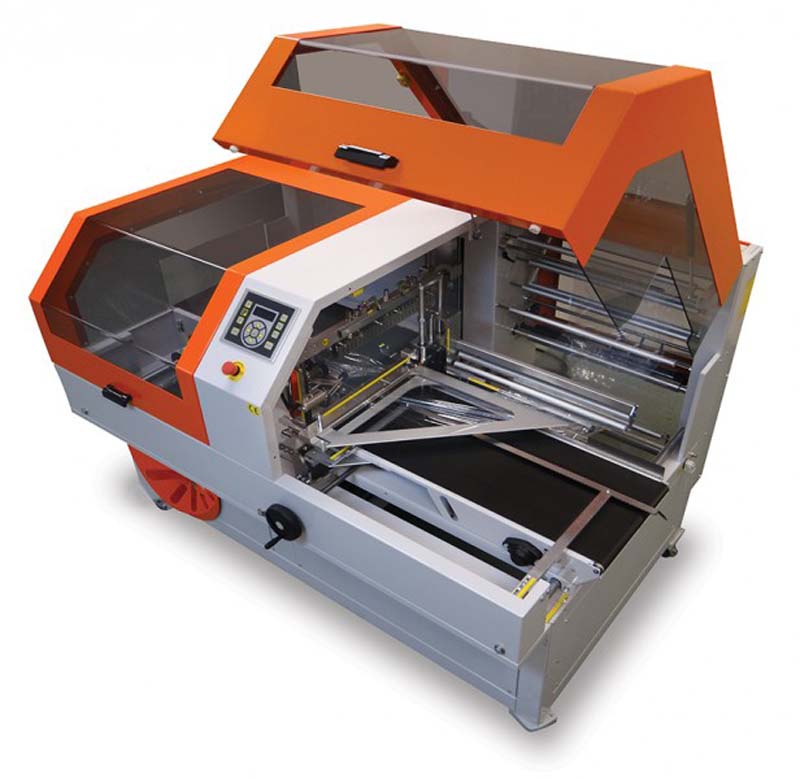

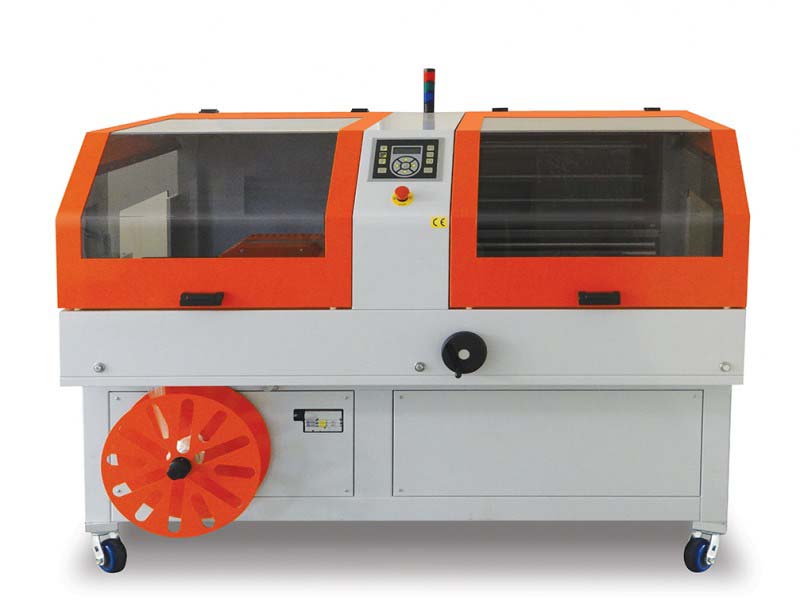

6800CS Automatic Side Seal Shrink Wrapper

High performance side sealer

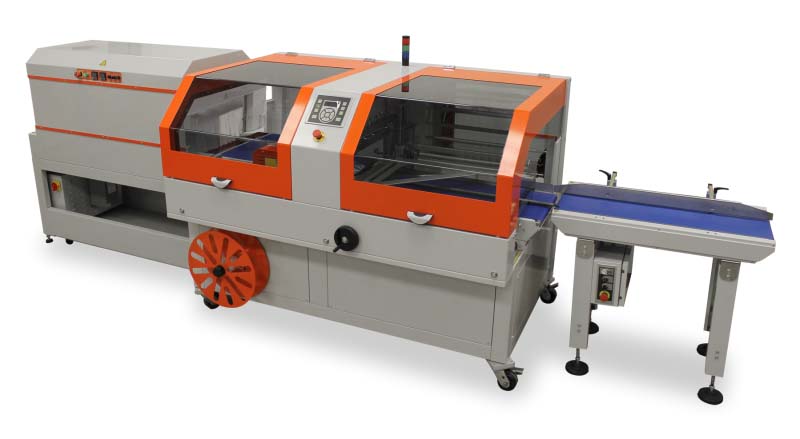

The Clamco 6800CS automatic side sealer is a highly efficient, intermittent motion, automatic side seal shrink wrapper that offers both high speed and exceptional value. This automatic side sealer combines a hot knife end seal with a rotary sealer, eliminating the fixed length side in the front. Compared to conventional automatic L-bar sealers, the 6800CS automatic side sealer can pack products of any length and do so at high speed. Engineered for smooth product transfer and high production output, the 6800CS automatic side sealer shrink wrapper can deliver conveyor speeds up to 100 ft/min and wrap up to 4,200 packs per hour. The system is perfect for polyolefin or polyethylene center folded shrink film. Packages can be as large as 8″ high, 16″ wide, and virtually any length. Matched with a Clamco heavy duty shrink tunnel and infeed conveyor, the 6800CS side sealer makes an outstanding high production shrink wrapping system.

Unique sealer technology

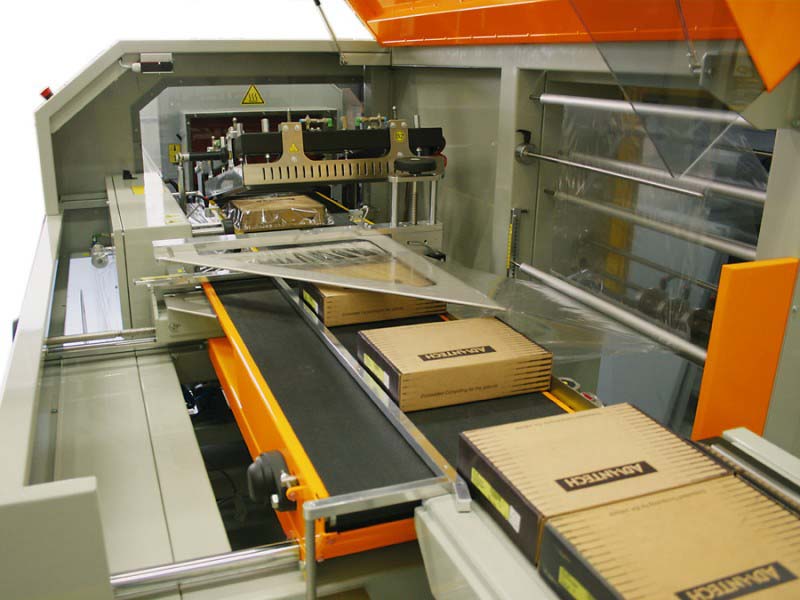

The 6800CS features a continuous side sealer with an intermittent motion hot knife cross seal bar. Film feed is achieved by an inverted head, permitting product to be delivered to the sealer by conveyor. This gives the 6800CS a wide range of product height to width size choices. The 6800CS side sealer has trailing edge sensors that tell the machine when the product is clear of the end seal jaw ensuring smooth and consistent operation.

Easy to operate

The 6800CS side sealer can be set up in minutes, is easy to program, and offers multiple operating modes for performance and convenience. This CE compliant machine is one of the most versatile automatic side sealers on the market today. The Clamco 6800CS automatic shrink wrapper includes a 2 year limited warranty. Leasing Options from $810/month
Supplier:

Features

Operating Features

  • Package speed up to 70 per minute for a high production output
  • Smooth Quiet Operation to reduce plant noise levels
  • Easy to navigate interface for operators of most skill levels
  • Display of key packing statistics, including production rate and efficiency
  • Continual monitoring of product length to detect packing errors
  • Film-economizer wheels reduce scrap and improve final package appearance
  • Scrap take-up wheel keeps the work area clean
  • Automatic product length detection allows individual or multiple products to be wrapped

Sealing Features

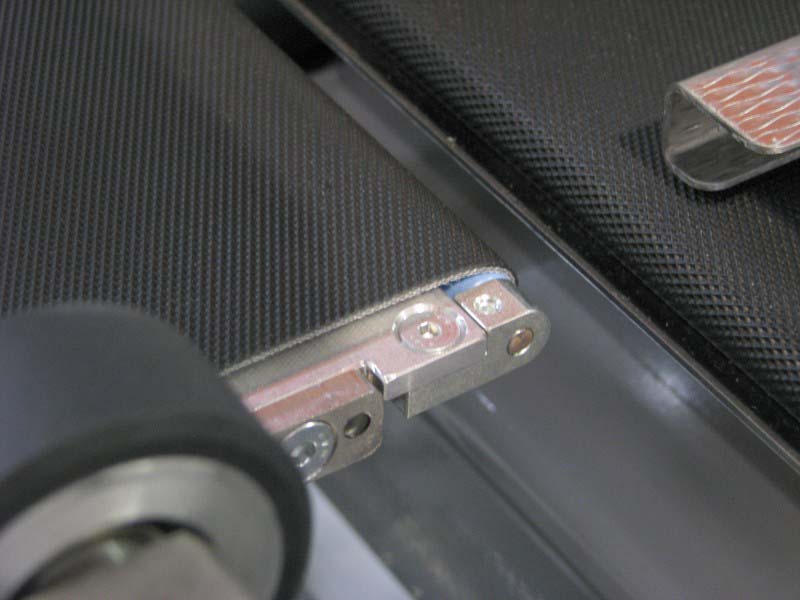

  • Closing conveyor for smooth product transfer
  • Rounded cross seal bar decreases film breakage
  • PTFE-coated side seal works with most shrink films
  • Automatic adjustment of cross seal bar opening based on product height increases wrapping speed
  • Automatic Seal Centering on both side seal and cross seal for enhanced package appearance

Set-Up Features

  • Low film cradle with inverted head for easy film loading and threading
  • Quick changeover and 20 program memory allows for product setup in less than five minutes
  • Automatic seal centering on both the side seal and the cross seal, for a clean looking package

Safety Features

  • Fully enclosed guarding ensures operator safety
  • Smooth and quiet operation reduces plant noise
  • Compliance with CE regulations ensures improved safety and design
  • Easy to reach emergency stop button

Specs

Model 6800CS
Production capacity up to 70 packs/min
Conveyor speed up to 100 fpm
Cross seal bar width 19.75″
Product width (max) 16″
Product height (max) 8″
Product length (max) unlimited
Film width (min – max) 13″ – 23.5″
Film roll diameter (max) 13.75″
Electrical 220V, 3 Ph, 7 amp
Air 90 psi
Machine size 86″ L x 61″ W x 61″ H
Shipping weight 1,800 lbs
Warranty 2 years

Videos

Options

Operating Options

  • Polyethylene cross seal bar to use 0.6 -3 mil polyethylene film
  • Stainless steel frame for applications in the food industry
  • Print registration for pre-printed film
  • Safety photocell to ensure cross seal bar does not make contact with product
  • 3′ Infeed conveyor
  • 6′ Infeed conveyor
