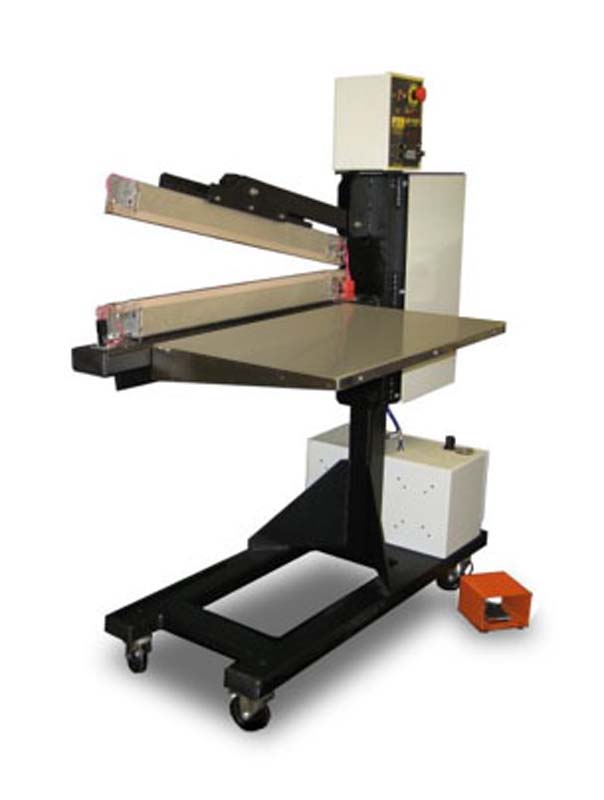

PCAN

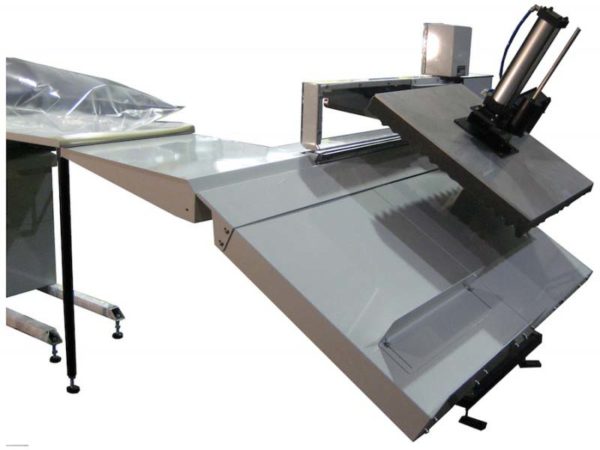

Vertrod PCAN Pneumatic Cantilever Impulse Sealer rear 800x600

Vertrod PCAN Cantilever Sealer 2 479x600

Vertrod P-CAN Pneumatic Cantilever Sealer

Industrial pneumatic sealer with unobstructed sealing jaws

The Vertrod P-CAN pneumatic cantilever sealer is an industrial grade thermal impulse heat sealer for applications that require unobstructed access to the sealing jaws. Typical applications are sealing across tubing, lap sealing a sleeve or “dead-end” assembly, splicing thin belts, sealing filling valves on free standing bags (pouches) and closing bulky packages.

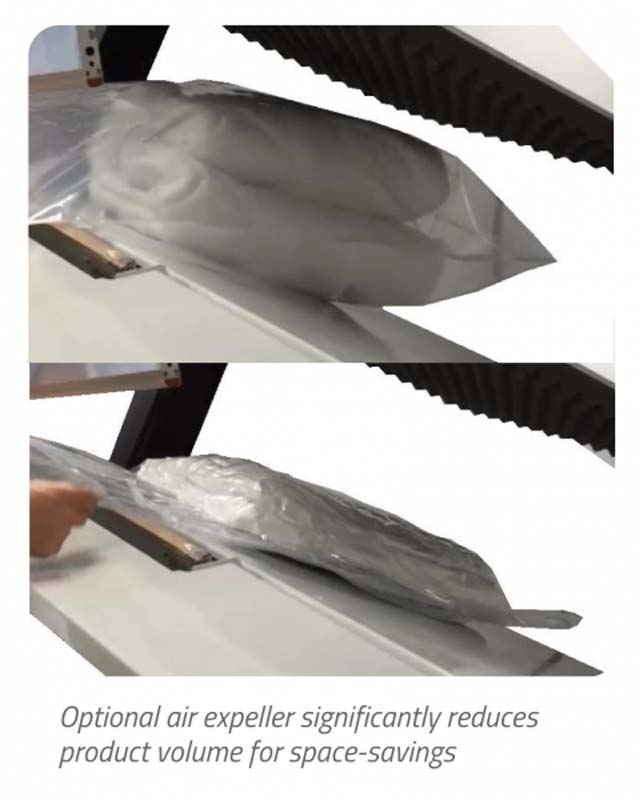

Combine with an Air Expeller to reduce product volume

With the optional air expeller, product volume can be reduced by means of compression. The air expeller compresses the product while forcing air out of the package, just prior to the sealing cycle. This method is faster than vacuum packaging to reduce product volume while also maintaining a consistent, uniform package shape.

A Bagmaster bag opener used in conjunction with the optional extended product support table will allow a single operator to load product and run the compression/sealing cycle in a single step.

Typical compression applications include packaging foam products, textiles, and other bulky flexible products. The Vertrod P-CAN pneumatic cantilever is built in three frame sizes with seal lengths ranging from 14″–36″ and a variety of sealing jaw configurations.

The Vertrod P-CAN pneumatic cantilever sealer is made in the USA and includes a 3-year limited warranty.

Leasing Options from $170/month

Categories: Bag Sealers

Supplier: PAC Machinery

Features

Sealing features

Seal length: 14″, 20″, 24″, 30″, or 36″
Seal width: 1/4″ standard (other widths optional)
Single side heater bar with opposing pressure bar
(bottom jaw heated)
Time-based thermal impulse sealing system
High pressure sealing cylinder

Construction features

Welded steel frame with powder coat finish
Adjustable height sealing head for thin or thick materials

Safety features

Pneumatic low-pressure jaw close safety system with release if obstruction is detected
Foot switch cycle activation
Lexan safety cover over sealing jaws (optional)

Specs

Compression features (optional)

Pneumatic air expeller for product evacuation
8” opening between compression plate and support table (larger openings optional)
Independent speed control for seal jaws and air expeller
Adjustable pressure setting for air expeller
Product support table with height and angle adjustment

Sealing options

PacMed validatable and calibratable control system
Wider seal widths: 3/8″, 1/2″, 2x 1/8″, 2x 1/4″
Reduced jaw opening for higher packaging rates
Bi-active jaws (top and bottom heated bars)
Hot Wire Trim (beaded trim seal)
Cold Cut Wire Trim
Water Cool ready heater bar
Suretemp™ temperature controller with digital readout
(up to 350°F)
High Temperature Package (350°–650°F)
Water re-circulating package
Water Chiller

Air Expeller options

Air Expeller assembly for compression of product and
evacuation of air
Large product clearance for air expeller (8″–12″ or 12″–16″)
Extended product support table

Videos

Resources

Options

Model	Vertrod P-CAN Cantiliver Sealer
Seal length	14″, 20”, 24”, 30”, 36”
Seal width	1/4″ (3/8″, 1/2″, 2x 1/8″, 2x 1/4″ optional)
Electrical	120V, 1ph, 15A
Air minimum	80psi @ 5CFM
Warranty	3-years
Country of Manufacture	USA

Model	Dimensions
P-CAN 14″ 20″	54”L x 20”D x 62” H
P-CAN 24″ 30″	63”L x 20”D x 62” H
P-CAN 36″	69”L x 20”D x 62” H
P-CAN 14″ 20″ w Air Expeller Extension Table	68”L x 48”D x 62” H
P-CAN 24″ 30″ w Air Expeller Extension Table	88”L x 48”D x 62” H
P-CAN 36″ w Air Expeller Extension Table	94”L x 48”D x 62” H
