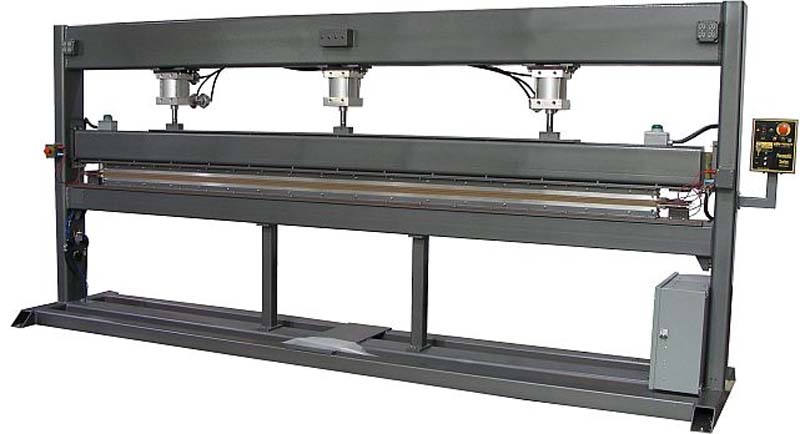

Vertrod BS Impulse Sealer

The Vertrod BS impulse sealer is designed for making extra long heat seals, sealing high-temperature materials, and sealing very thick or multiple layers of various films and laminates. Some high temperature films that can be sealed are: Nylon, Aclar, Tedlar, Teflon, and Urethane Film. Very wide gusseted polyethylene tubing, each layer up to 10 mils thick, can also be sealed on the Vertrod BS, our highest pressure impulse bar sealer.

The welded rectangular steel tubular frame provides the structural stability necessary to make seals at high pressure up to 144″ in length and up to 1″ in width. Films can be fed from the front or back of the machine and passed between the sealing jaws for an uninterrupted flow with the open back design.

The Vertrod BS impulse sealer is made in the USA and includes a 3 year limited warranty.

Leasing Options from $480/month
Categories:
Supplier:

Features

  • Seal length: 60″, 72″, 84″, 96″, 108″, 120″, 132″, 144″
  • Seal Width: 1/4″
  • Single side heater bar with opposing pressure bar (bottom jaw heated)
  • Direct drive vertical jaw motion for increased sealing pressure capability
  • Time-based thermal impulse sealing system
  • Independent Seal and Cool timers from 0 to 3.75 seconds (.25 second increments)
  • Open-back feed through style with 3″ jaw opening
  • Incrementally adjustable top jaw for precise alignment along sealing length
  • Welded structural steel frame construction with leveling pads that allow for anchoring machine
  • Pneumatic low-pressure jaw close safety system with release if obstruction is detected
  • Safety switch indication lights for precise, easy positioning of heat/high pressure engagement
  • Foot pedal cycle activation
  • Air requirement (min): 100 psi
  • Electrical requirement: 230V, single-phase

Specs

  • Wider seal widths: up to 1″
  • Dual Seals (parallel)
  • Dual Sealing Jaws (parallel)
  • Bi-active jaws (top and bottom heated seal bars)
  • Jaw Selector Switch (Bi-Active or Top Heat)
  • Heater Bar on top, lower pressure bar
  • Hot Wire Trim Seal (Beaded trim seal)
  • Cold Cut Wire Trim
  • Water Cool ready heater bar
  • Stainless steel adjustable work shelf
  • Suretemp™ temperature controller with digital readout (up to 350°F)
  • High Temperature Package (350°- 650°F)
  • Double foot pedal, anti-tie down
  • Dual palm controls, anti tie down
  • Water re-circulating package
  • Water Chiller
  • Pneumatic Flying Knife cut off
  • Motorized Roll Holder Assembly and Polylock
  • Hot embossing too
