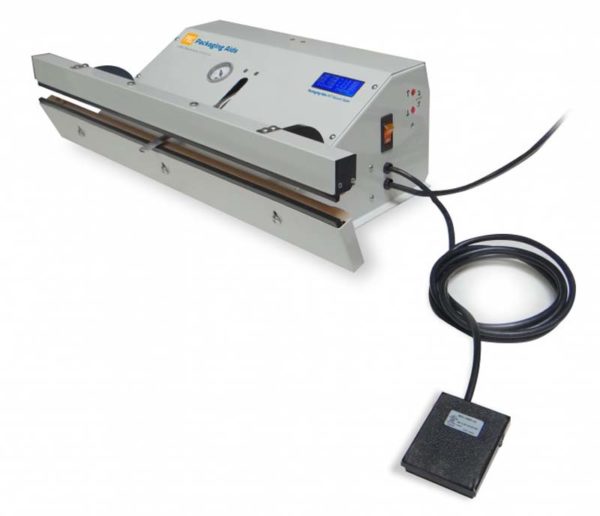

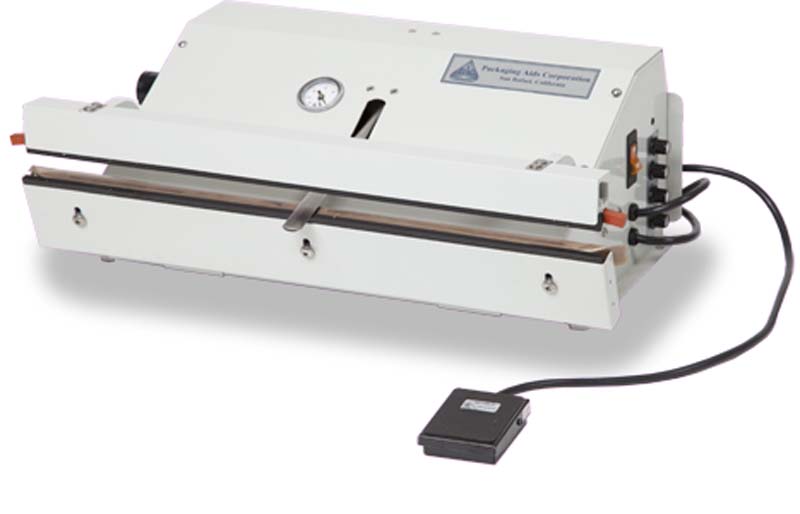

PVT Industrial Vacuum Sealer

The Packaging Aids PVT industrial tabletop vacuum sealer is the industry-leading tabletop vacuum sealer for applications where removal of air from a bag before sealing is required. The PVT benchtop vacuum sealer combines speed, flexibility and economy for lower volume applications requiring an industrial quality machine.

The PVT vacuum sealer is available in 20″, 25″ and 30″ seal lengths. This vacuum sealer features a quiet venturi vacuum system and a special low-pressure jaw safety system that will not move into the high-pressure cycle if an obstruction is detected.

Additional standard features on this industrial vacuum sealer include independent timers for vacuum, seal, and cool cycles. These controls enable the user to specify the precise combination of parameters ensuring excellent seals every time. For ease of use, a foot switch is provided to enable the user to hand-position the bag being sealed.

There are a variety of options available for the PVT benchtop vacuum sealer, making it one of the most versatile sealers of its type. Options include: sureseal digital interface, bi-active seal, gas flush, vacuum relief valve, dual nozzles, workshelf, and stainless steel cabinet.

The PAC PVT tabletop vacuum sealer is made in the USA and includes a 2 year limited warranty.

Categories: Industrial Vacuum Sealers

Supplier: PAC Machinery

Features

Sealing Benefits

Single side impulse heater bar with opposing pressure bar (bottom jaw heated) for seal reliability
Pneumatically operated sealing jaw for high pressure sealing
Independent digital seal and cool timers ensures accurate settings
Optional SureTemp temperature controller ensures seal quality

Vacuum Benefits

Type 60 Venturi Vacuum pump for fast and quiet air evacuation and low maintenance
Single Vacuum/Gas Flush Nozzle (snorkel) to accommodate narrow or wide bags
Digital timers for each stage of vacuum and gas flush (when applicable)

Safety Benefits

Pneumatic low-pressure jaw close safety system with release if obstruction is detected
Jaw close timeout with release when delay is detected
Heavy duty seal transformer(s) with thermal overload protection

Specs

Model	PVT Industrial Vacuum Sealer
Seal Lengths	20″, 25″, 30″
Seal Width	3/16″
Activation	Footswitch
Air requirement (min)	100 psi
Electrical requirement	120V
Dimensions	23″ – 33″ W x 15″ D x 8″ H
Shipping Dimensions	33″ W x 19″ D x 14″ H
Shipping Weight (approx)	60 lbs.
Warranty	2 year limited
Country of Manufacture	USA

Videos

Resources

Options

Vacuum Options

Gas Flush: for extending shelf life via modified atmosphere packaging
Multi-Stage: perform multiple vacuum and gas cycles to achieve lower residual oxygen level
Dual Stainless Steel Nozzles: for vacuum packaging two bags at a time
Vacuum Level Sensor: ensures consistent vacuum levels are achieved every cycle
Vacuum Relief Valve: sets a maximum vacuum level to prevent product damage
Foot switch or timed vacuum control

Sealing Options

Suretemp™ Temperature Controller: ensures consistent seal quality (up to 350°F) by accurately controlling temperature via a thermocouple
Bi-active Seal: top and bottom heated seal bars for thick materials or reducing seal time
Seal Jaw Selector Switch (bi-active version only): allows bottom seal jaw to be turned off
Seal Only Switch: retracts nozzles for use as a bag sealer (no vacuum)
5/16″ Seal Width

Other Options

SureSeal Digital Interface: includes 9 program job storage, cycle counter, and multiple vacuum/gas cycles when ordered with gas flush
Ported Exhaust: for plumbing exhaust out of a cleanroom
Stainless Steel Construction: for wet or corrosive environments
Floor stand: for use on the floor instead of on a table
Workshelf: supports the product during the packaging cycle (20″ wide x 8″ deep)
220V operation
CE compliant design
Spare parts kit
