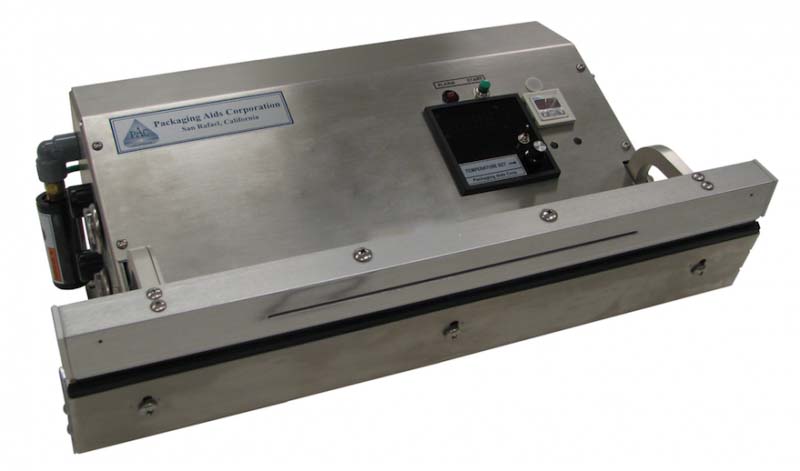

PT Med Validatable Medical Pouch Sealer

The PAC PT Med is a fully validatable medical pouch sealer designed to comply with the stringent guidelines of ISO 11607 terminally sterile packaging requirements. The PT Med is a compact tabletop impulse sealer intended for medical and other industrial applications where control of process parameters is critical and seal validation is required.

PAC medical pouch sealers are capable of producing quality hermetic seals in a wide range of materials with consistency and repeatability. The PT Med is equipped with PAC’s medical control system. It is a precise temperature based system with real time monitoring of all sealing parameters for applications requiring seal validation. Built in alarm functions prevent operation when outside of validated settings. External Ports in the control cabinet allow for verification and calibration of internal controllers, a requirement for IQ/OQ processes.

PAC Machinery’s PT Medical bag sealer is available in 20″, 25″, or 30″ seal lengths with top jaw heated for sealing most medical pouches. Bi-active sealing jaws, top and bottom heat, is optional for sealing thicker and more complex materials. A jaw selector switch (optional) provides the versatility to seal with top heat only or bi-active heat.

The PT Med features an all stainless steel cabinet and high pressure pneumatic sealing capability. Ported exhaust is standard on the PT Med to allow for packaging in a clean room without risk of contaminating the environment.

The PT Med Validatable Medical Pouch Sealer is made in the USA and includes a 2 year limited warranty.

Leasing Options from $180/month



Sealing Features:

  • Seal Lengths: 20″, 25″, 30″
  • Seal Width: 5/16″
  • Single side impulse heater bar with opposing pressure bar (top jaw heated)
  • Pneumatically operated sealing jaw for high pressure sealing
  • Independent digital seal and cool timers (1.0 – 9.9 seconds)
  • Digital sealing pressure switch with adjustable band to set high and low tolerances

Temperature Control Features:

  • Temperature controller with digital readout to 350° F
  • Adjustable temperature band for high and low alarm tolerances
  • Seal time begins when set temperature is achieved to prevent inconsistencies with heat build up in sealing jaws, ensuring repeatable seals.

MedPAC Medical Control Features:

  • ISO 11607 Compliant
  • Fully calibratable pressure switch and temperature controller
  • External ports in control cabinet for verification and calibration of internal controllers
  • Real time seal process parameter monitoring (Temperature, Pressure, Time)
  • Alarm function prevents operation when there is a deviation from validated settings

Safety Features:

  • Pneumatic low-pressure jaw close with release if obstruction is detected
  • Jaw close time out with release when delay is detected


  • Ported Exhaust for plumping exhaust outside of a cleanroom
  • Stainless Steel Construction to mitigate particle contamination
  • Designed to effectively package medical devices in a wide variety of bag materials


  • Air Requirement (min): 100 psi
  • Electrical Requirement: 115v standard (230v optional)
  • Dimensions: 23″ – 33″ W x 8″ H x 15″ D
  • 2 year limited warranty
  • Made in USA



  • Verification Timer – plugs into time port to display and verify sealing time
  • Verification Temperature Meter with data logging capability – plugs into temperature port to verify sealing temperature
  • Verification Pressure Gauge – plugs into pressure port to verify internal pressure switch
  • Bi-active jaws (top and bottom heated bars) with jaw selector switch
  • Floor stand: for use on the floor instead of on a table
  • Workshelf: supports the product during the packaging cycle (20″ wide x 8″ deep)
  • 230V operation
  • CE compliant
