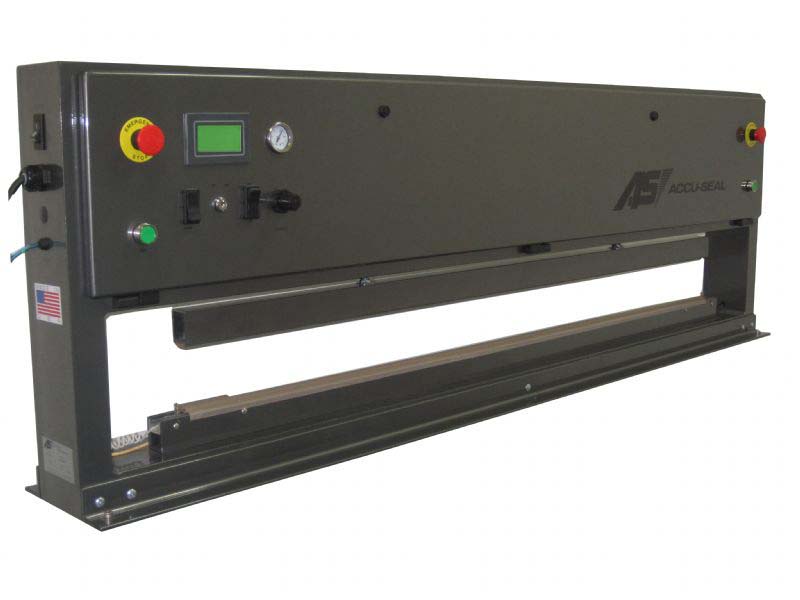

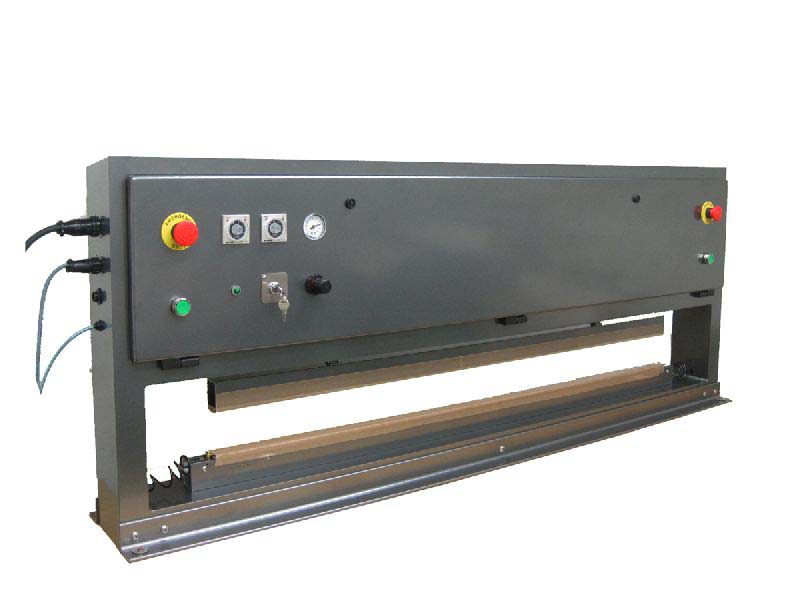

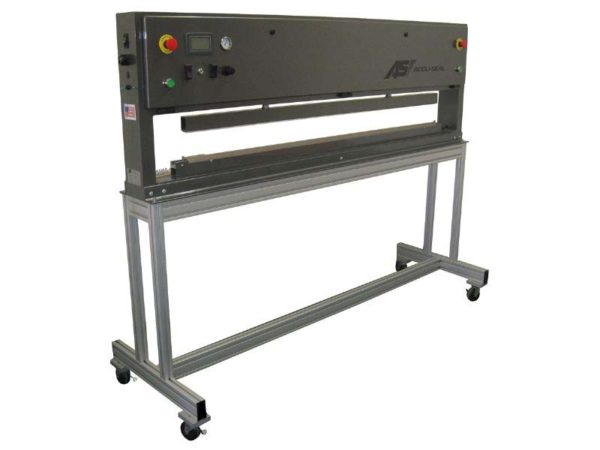

Model 60 Feed-Through Heat Sealer

Validatable Impulse Heat Sealer with Remote Seal Head allows the flexibility to arrange the sealing station to fit your process. Full digital high speed PLC controller allows for customized programming, and password protection. Audible and visual alarms with text messages require supervisor password override. Multiple programmable heat seal recipes with operator lockout for ease of operation, and maximum productivity without compromising process control. The New model 830 Validatable Impulse Heat Sealer with Remote Seal Head has the flexibility to fit your sealing process perfectly. The 830 Impulse heat sealer has a remote seal head, control cabinet and touch screen. Arrange a custom heat sealing station that fits your process. Perfect for packaging in a laminar flow hood, on a table top, cart or stand. Standard features include full digital process control for temperature, time and pressure, password protected seal process paramentes, visual and audible alarmed process fault indication. Stores 50 seal process recipes, Fully validatable and verifiable for IQ, OQ, PQ. Meets 11607 requirements. CE.
Categories:
Supplier:

Features

Built-In Features:

  • Pneumatic Jaw Pressure Control
  • 10 Second Adjustable Electronic Heat Timer
  • 60 Second Adjustable Electronic Cool Timer
  • Obstruction Sensing Safety Circuit
  • Lockout Control Safety Key Switch

Specs

Seal Length from 40″ to 10 feet in 10″ increments
Seal Width 1/4″, 3/8″, 1/2″, 1″
Machine Length Seal Length +18″
Machine Width 9″
Machine Height 24.5″
Approx Weight 110 lbs (40″ with 1/4″ seal)
Power Requirements 120 Vac 220 Vac versions, varies by model
Air Requirements 1.0 CFM @ 80 PSI

Videos

Resources

Options

Factory Options:

  • Call us for details and custom requests: Element widths, Temperature Control, Cutter and special variations for your specific materials.
  • Standard Color White (Black or Anthricite additional)
