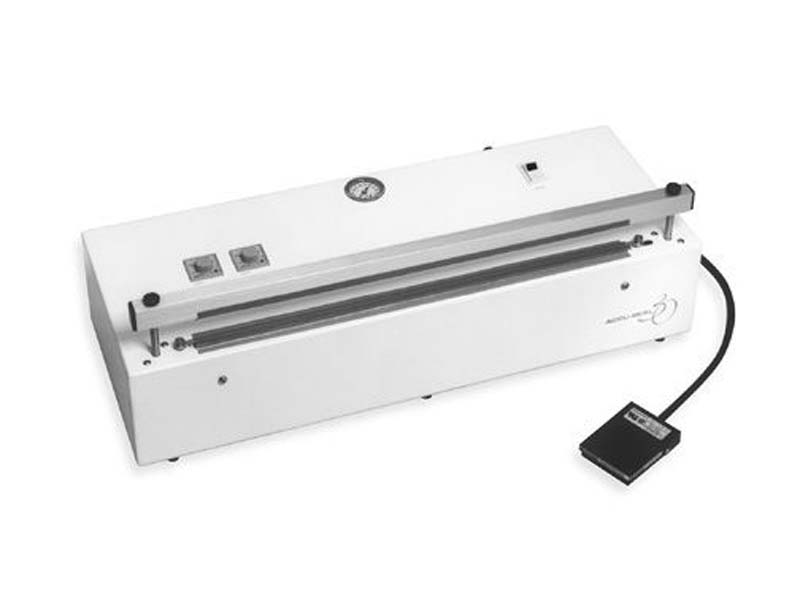

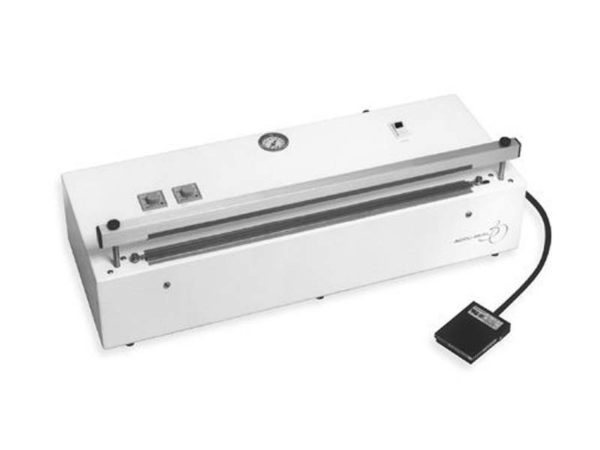

Model 30 Pneumatic Impulse Heat Sealer

This pneumatic jaw pressure sealer is the best all around bag sealer in the market and our top model for volume production. It combines performance with value in a machine that adjusts for most film sealing situations.
Categories:
Supplier:

Features

  • Pneumatic Jaw Pressure Control
  • 10 second Adjustable Electronic Heat Timer
  • 60 Second Adjustable Electronic Cool Timer
  • Electronic Foot Switch Activator
Requirements:
  • Power: 120 Vac, 7 Amps (1/4″x20″)
  • Air: 1.0 CFM @ 80psi

Specs

Size:
  • Length: Seal Length + 5.5″
  • Width: 9.5″
  • Height: 8.5″
  • Approx. Weight: 26-40 lbs.
Seal Length 15″, 20″, 25″, 30″ or 35″
Seal Width 1/4″ Standard (Other seal widths available)
Machine Length Seal Length +5.5″
Machine Width 9.5″
Machine Height 8.5″
Approx Weight 26 – 40 lbs.
Power Requirements 120 Vac, 7 Amps (1/4″ x 20″)
Air Requirements 1.0 CFM @ 80 PSI

Videos

Resources

Options

Factory Options:
  • Tap to Start Safety Feature
  • Q-Trim, 1/8″ or Beaded Band element
  • Product Support Tray
