Features
Benefits
1. Easy to use
2. Allow for monitoring of humidity conditions in various types of barrier packaging
3. Can be used in conjunction with a desiccant
4. Allow for instant visual verification of product integrity
5. Approved for various MIL Spec, JEDEC, ECB & REACH applications: MIL-I-8835, MS 20003-2, JEDEC Standard 033 and JEDEC Standard 033B.
6. Low cost
Specs
There are two main types of humidity indicator cards: reversible and irreversible. Reversible humidity indicator cards work much like a thermometer, fluctuating to indicate the current relative humidity level. Maximum, or irreversible, cards are designed to indicate the highest relative humidity level to which goods have been exposed.
Reversible Cards
| Description |
Indicates (%RH) |
Dimensions |
Pkg./Approx. Wt. |
| One-Spot |
| MS26507-1: Designed for use in desiccant containers to ensure the desiccant is in an activation condition.
Complies with Mil-I-8835 and Mil STD-2073-1D Method 50. |
8 |
3¼” x 3¼” |
625 cards per liter can;
2,500 cards per case;
16 lbs per case |
| MS26507-1S: Designed for use in desiccant containers to ensure the desiccant is in an activated condition.
Complies with Mil-I-8835 and Mil STD-2073-1D Method 50. |
8 |
1½” x 2” |
250 cards per liter can;
10,000 cards per case;
25 lbs per case |
| Three-Spot |
| MS051060: Meets JEDEC Standard J-STD-033B and MIL-I-8835. |
5, 10, 60 |
2” x 3” |
125 cards per liter can;
5,000 cards per case;
25 lbs per case |
| MS051015: Meets JEDEC Standard J-STD-033A and MIL-I-8835. |
5, 10, 15 |
2” x 3” |
125 cards per liter can;
5,000 cards per case;
25 lbs per case |
| MS123: Designed for the electronics industry. Meets IAW MIL-I-8835. |
10, 20, 30 |
2” x 3” |
125 cards per liter can;
5,000 cards per case;
25 lbs per case |
| MS234: Designed for the electronics industry. Meets IAW MIL-I-8835. |
20, 30, 40 |
2” x 3” |
300 cards per liter can;
7,500 cards per case;
29 lbs per case |

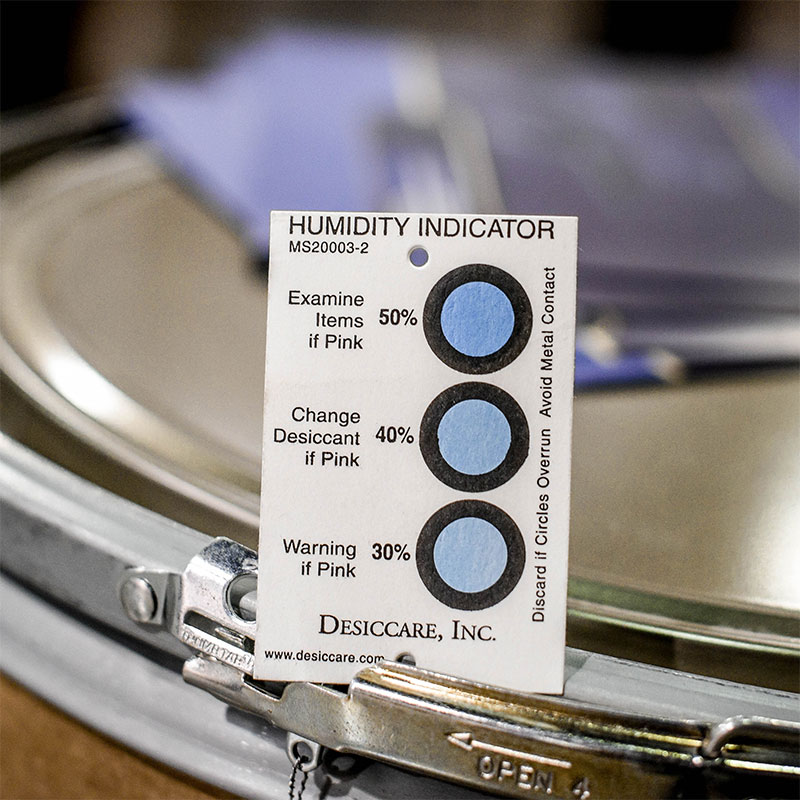

| MS20003-2: Current military standard approved by all government agencies, the U.S. Department of Defense and NATO for use in Method II packaging.
Complies with with Mil-I-8835 and Mil STD-2073-1D Method 50. |
30, 40, 50 |
2” x 3” |
125 cards per pint can;
5,000 cards per case;
25 lbs per case |
| Mil-I-20003-2: Used where space is limited. Identical in design to MS20003-2, except it is half the size. Ideal for packaging in small barrier bags.
Complies with Mil-I-8835 and Mil STD-2073-1D Method 50. |
30, 40, 50 |
1” x 15/8” |
500 cards per pint can;
20,000 cards per case;
27 lbs per case |
| Four-Spot |

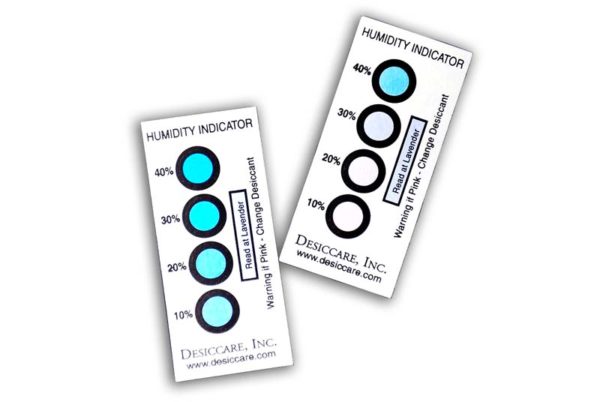

| HM-04 SMD-Humitector: Designed specifically for the electronics industry. Ideal for use with other components of the “Dry Pack” packaging concept.
Complies with Mil-I-8835 and Mil STD-2073-1D Method 50. |
10, 20, 30, 40 |
2” x 3” |
100 cards per pint can;
4,000 cards per case;
23 lbs per case |
| Six-Spot |
| AEC826004NE: Designed for electronics packaging. Complies with Mil-I-8335 and Mil STD-2073-1D Method 50. |
10, 20, 30, 40, 50, 60 |
19/16” x 4¾” |
200 cards per liter can;
5,000 cards per case;
25 lbs per case |
Irreversible / Maximum Cards
| Description |
Indicates (%RH) |
Dimensions |
Pkg./Approx. Wt. |
| Traditional |
| MX56789: Each level of relative humidity is represented by a blue crystal that dissolves to a large blue spot above the indicated humidity percentage when exposed for a period of 24 hours or more. |
50, 60, 70, 80, 90 |
4½” x 3” |
50 cards oer gallon;
250 cards per case;
16 lbs per case |
Combined Reversible & Irreversible
| Description |
Indicates (%RH) |
Dimensions |
Pkg./Approx. Wt. |
| Traditional |
| MXC56789: In addition to irreversible crystals, the MXC56789 also has a reversible indicator to show the current humidity when the package is opened, in the event that humidity rose and dropped during shipping. |
Irreversible: 50, 60, 70, 80, 90
Reversible: 10 to 100 |
4½” x 4½” |
25 cards per gallon;
125 cards per case;
10 lbs per case |
Commercial
| Description |
Indicates (%RH) |
Dimensions |
Pkg./Approx. Wt. |
| 6203-100: Supplied with a hole for easy installation. Also available with adhesive backing. |
15 to 95 |
1½” x 4¼” |
100 cards per bag |
