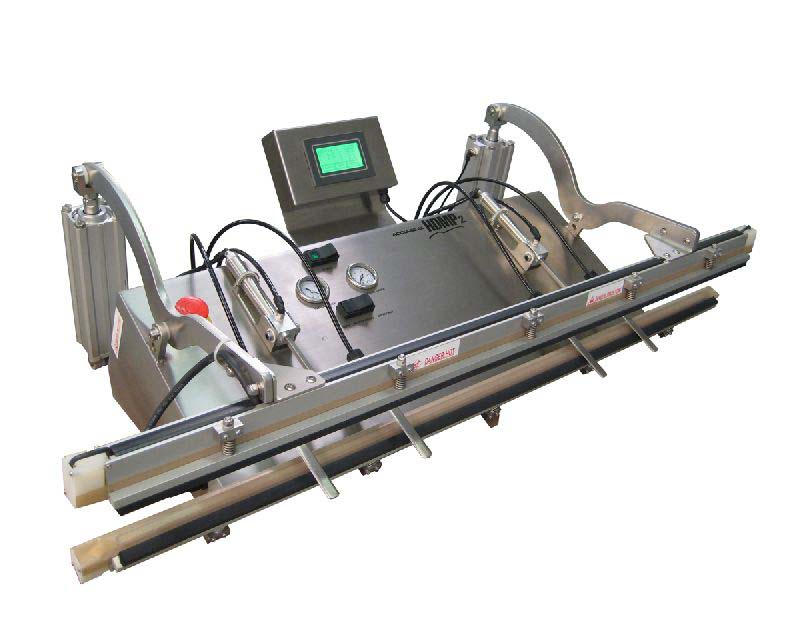

HDMP3 Heavy Duty Vacuum Sealer 35″ to 60″

The Heavy Duty Multi-Purpose Series Sealers have the Power and Control it takes to handle virtually any sealing, vacuum sealing or modified-atmosphere packaging application. Dual side or single side heating and high pressure seal bars from 20″ to 60″. Wide Body 35″, 40″, 50″ and 60″. Small Body 20″, 25″, and 30″. HDMP Series Impulse Vacuum Sealers have the power and control it takes to handle virtually any sealing, vacuum sealing or modified atmosphere packaging (MAP) application. Dual side or single side heavy duty heat sealing bars in seal lengths up to 60”. These heavy duty vacuum sealers have digital operator interface and PLC control with selectable operating modes. The easily detachable retracting vacuum nozzle assembly and NEMA 4 rated stainless steel enclosure allows for complete cleaning and sterilization for the harsh environments of the industrial, food, chemical, and electronics packaging industries. Clean room friendly vacuum sealer. The HDMP is also available in a Seal Only model.   Normal 0 false false false EN-US X-NONE X-NONE /* Style Definitions */
table.MsoNormalTable
{mso-style-name:”Table Normal”;
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-qformat:yes;
mso-style-parent:””;
mso-padding-alt:0in 5.4pt 0in 5.4pt;
mso-para-margin:0in;
mso-para-margin-bottom:.0001pt;
mso-pagination:widow-orphan;
font-size:10.0pt;
font-family:”Arial”,”sans-serif”;}
Request Information
View Specifications
Categories:
Supplier:

Features

Built-in Features:

  • Digital Operator Interface and PLC Control: Accurate Digital Timers
  • Selectable Operating Modes: Gas-Vac-Seal (1-99 cycles), Vac-Seal, Seal Only
  • Detachable Seal Bars: Upgradable to seal lengths up to 60″
  • NEMA 4 Stainless Steel Enclosure: Laser Cut and Welded Seams Easy to Clean
  • Gas Purge, Standard
  • High-Flow, Retracting Vacuum Nozzles: Two Nozzles (Small Body), Four Nozzles (Large Body)
  • Upper and Lower Heater elements (Flat): Upper/Both Heater Element Togglr Switch
  • High Pressure Seal Jaws: Seal Difficult Materials
  • Safe, Low Pressure Jaw Close
  • Extended Element Life: New Element Design Eliminates Hot Ends, New Element Tensioner Design Reduces Element Buckling

Requirements:

  • Power: 120 Vac, 16 Amps (1/4″)
  • Air: 4.6 SCFM @ 90 PSI (Small Body), 9.2 SCFM @ 90 PSI (Large Body)

Specs

Seal Length – Small Body 20″, 25″, 30″
Seal Length – Large Body 35″, 40″, 50″, 60″
Seal Width 1/4″
Machine Length Seal Length + 4″
Machine Width 18″
Machine Height 14″
Suction Flow – Small Body 3.7 SCFM
Suction Flow – Large Body 7.4 SCFM
Power Requirements 120 Vac, 16 Amps (1/4″) or 220V, 10A
Air Requirements – Large Body 4.6 SCFM @ 90 PSI
Air Requirements – Small Body 9.2 SCFM@ 90 PSI

Videos

Resources

Options

Factory Options:

  • 3/8″ Seal Width
  • Water Trap Filter
  • Increased Suction Flow
  • Bag Stretcher
  • Product Support Tray
