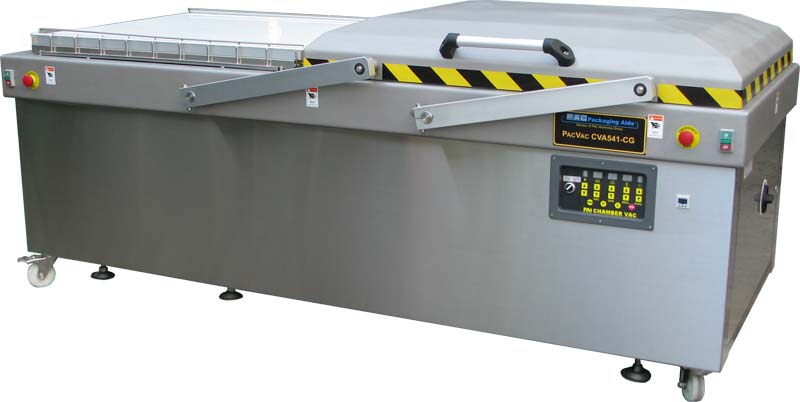

CV 550 Double Chamber Vacuum Sealer

The CV 550 double chamber vacuum sealer has a large and durable stainless steel flat chamber bed for vacuum packaging applications requiring a combination of maximum air removal and faster production speeds. The two chambers allow one to be reloaded while the other is processing. The CV 550 vacuum packaging machines are equipped with a pneumatic lid that automatically opens and closes at the push of a button, maximizing operator efficiency. The CV 550 double vacuum chamber is equipped with an industry leading Busch vacuum pump.

CV Double Chamber Vacuum Sealers include a 1 year limited warranty.

Leasing Options from $300/month

Categories: Industrial Vacuum Sealers

Supplier: PAC Machinery

Features

Sealing Features:

Double seal – 2 x 1/8″
Single heater bar with opposing pressure bar

Vacuum Features:

Busch vacuum pump (size varies by model)
Vacuum level gauge

Operating Features:

Stainless steel lid and frame
Two chambers with two seal bars per chamber
Pneumatically controlled lid for semi-automatic operation
Chamber bed filler plates to reduce vacuum time
Locking casters and levelers for mobility
Muffler to reduce noise of chamber evacuation
Ten program digital memory
1 year limited warranty

Specs

Model	CV 550
Seal Type (in)	2 x 1/8
# of Seal Bars	2
Seal Bar Configuration
Seal Length (in)	43.25
Distance Between Bars (in)	33.5
Chamber Size (W x D x H in)	50 x 40 x 10
Lid Movement	Pneumatic
Vacuum Pump	Busch 300 (12 HP)
Electrical	230V 3Ph 60Hz
Dimensions (W x D x H in)	100 x 43 x 66
Machine Weight (lbs)	2,100

Videos

Resources

Options

Vacuum / Gas Options:

Gas flush for purging nitrogen or other gases inside the bag
Multi-Stage for multiple vacuum and gas cycles prior to sealing
