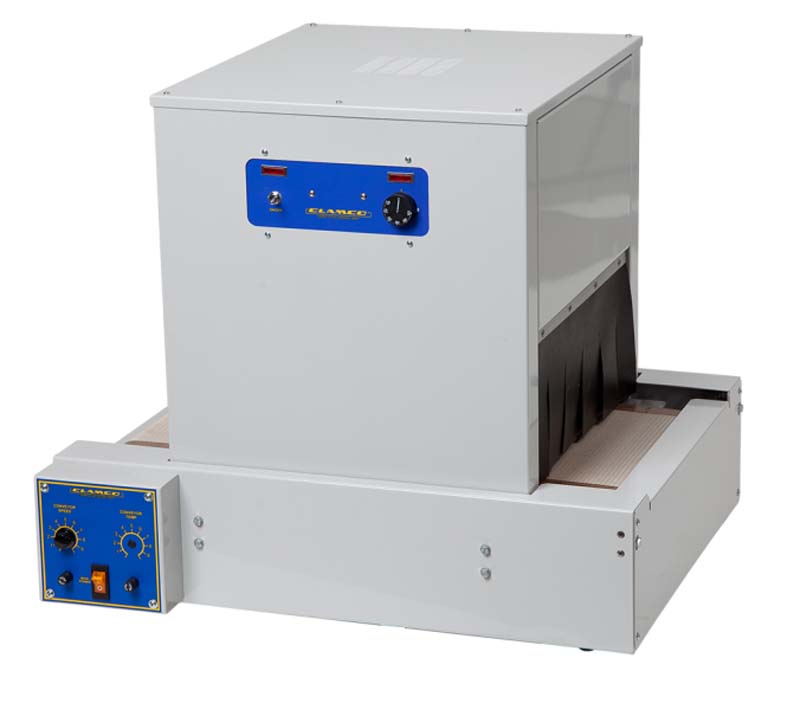

Clamco Model 820 Shrink Tunnel with Mesh Belt

Proven performance in a durable tabletop shrink tunnel

The Clamco Model 820 Shrink Tunnel is the choice for tough, dependable long-life performance in continuous production environments.

When professional quality packaging is required for smaller production demands, choose the tabletop shrink tunnel that provides complete heating all around the package along with the same cool down safety controls as our larger tunnels. Constructed of heavy-gauge structural steel, the Clamco 820 features a variable-speed PTFE coated mesh belt conveyor, airflow heat transfer, and an automatic cool down timer. A unique advantage in a tabletop tunnel is a riser bar under the mesh belt, which lifts the product momentarily for increased airflow from the bottom tunnel to enhance shrink packaging results.

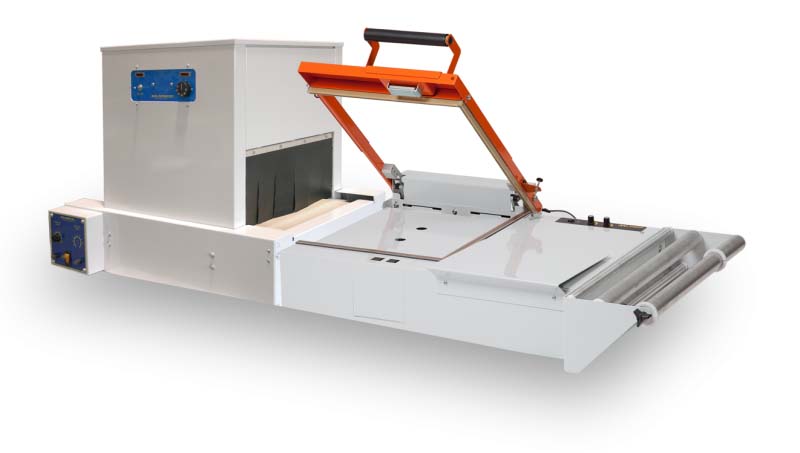

The 820 tunnel can be used separately or combined with the Clamco 1614 L-Bar Sealer tabletop industrial sealer to create a complete shrink packaging system that fits on a table. The 820 shrink tunnel combines advanced design, precision with tough, time-proven features—expertly crafted by Clamco, the industry’s respected name for steadfast reliability and value in shrink packaging.

The Clamco Model 820 Shrink Tunnel is made in the USA and it includes a 2–year limited warranty.
Supplier:

Features

Operating Benefits

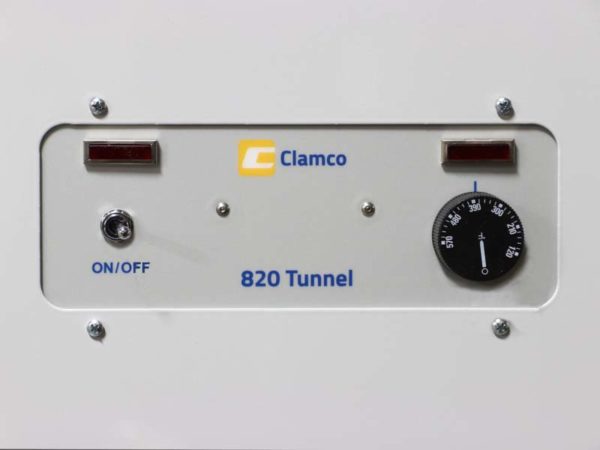

  • Easy to use tunnel temperature control with a temperature sensing thermocouple
  • Convenient 120V, electrical operation, just right for small production environments
  • Generous 2,100 watts of heating power
  • Heavy duty blower provides 360° air circulation for optimized performance
  • Fully insulated to maintain selected temperature inside the tunnel for consistent shrink wrapping
  • Tunnel curtain design minimizes heat loss and maintains tunnel temperature consistency

Shrink Benefits

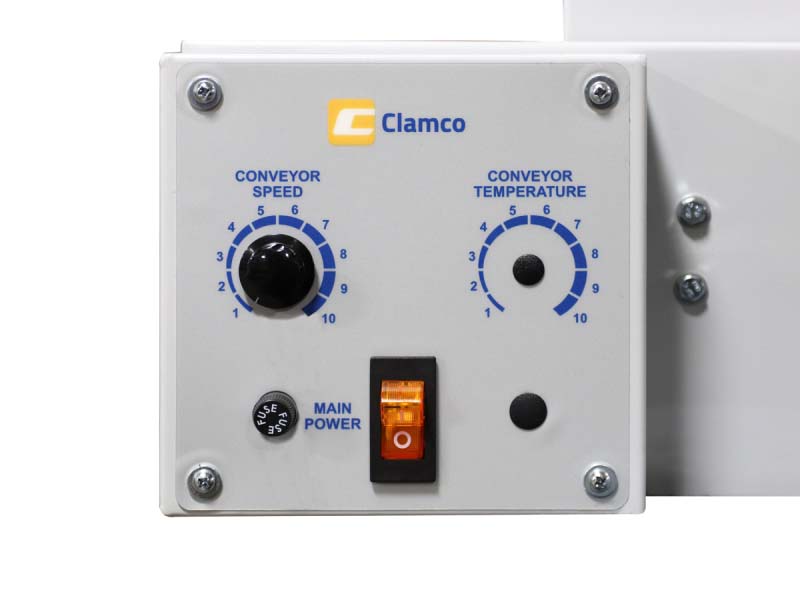

  • Variable speed tunnel conveyor control is used to maximize shrink appearance

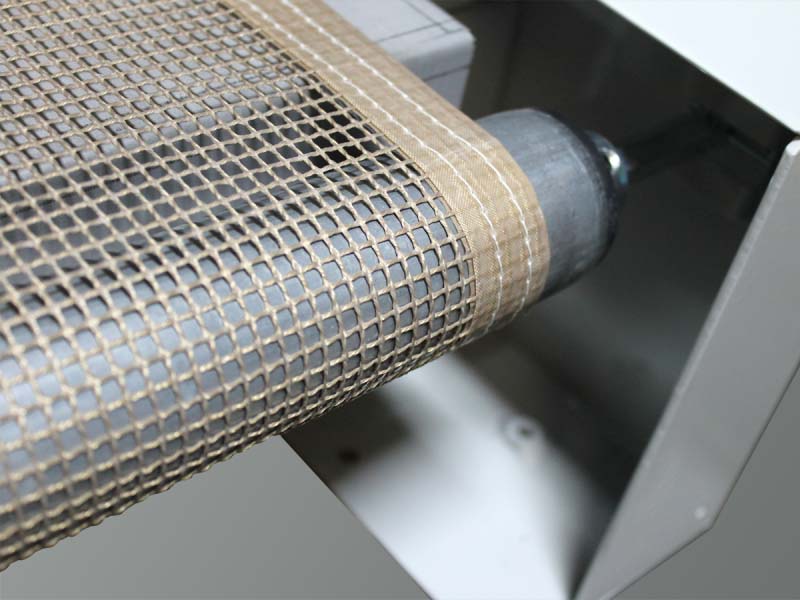

  • PTFE coated mesh belt allows ultimate airflow from the bottom of the chamber to offer full shrink on the bottom of the package
  • Bottom airflow is channeled to provide full air circulation for exceptional shrink in a tabletop unit
  • Riser bar under mesh belt lifts product momentarily to allow more airflow from bottom of tunnel

Safety Benefits

  • Automatic cool down timer and shut off for maximum component reliability

Specs

Model Clamco Model 820MB Clamco Model 820HD
Tunnel Length 20″ 20″
Tunnel Width 16″ 16″
Tunnel Opening Height 8″ 8″
Overall Dimensions 32″L x 27″W x 28″H 32″L x 27″W x 28″H
Maximum Package Size 16″L x 8″H 16″L x 8″H
Electrical 110V, 50/60Hz 220V for cold rooms or severe operating conditions
Power 2,100 Watts 4,000 Watts
Speed Up to 60 feet/min Up to 60 feet/min
Limited Warranty 2 Years 2 Years
Shipping Weight 220 lbs 220 lbs

Videos

Resources

Options

Options

  • 220V 4kW 820MB Tunnel for Cold Rooms
  • Console Leg Kit w/Casters and Levelers
