Audion D 545 AH Band Sealer

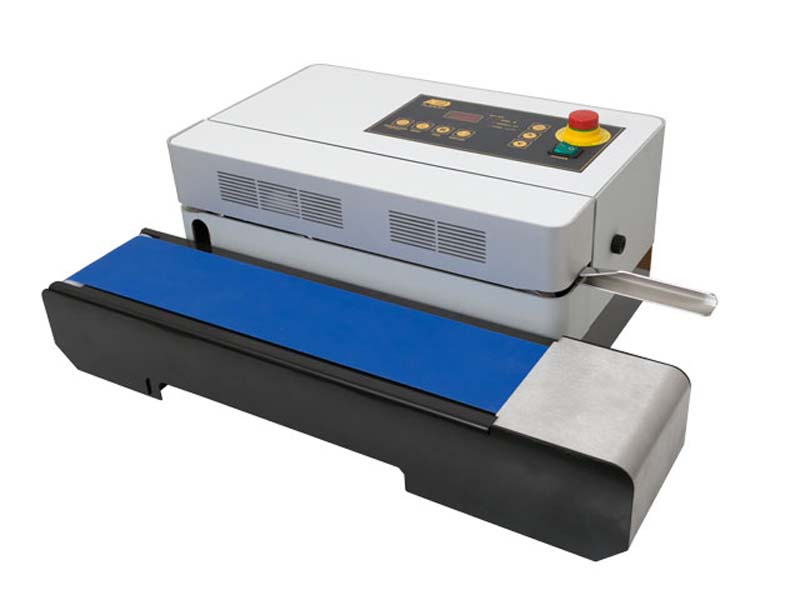

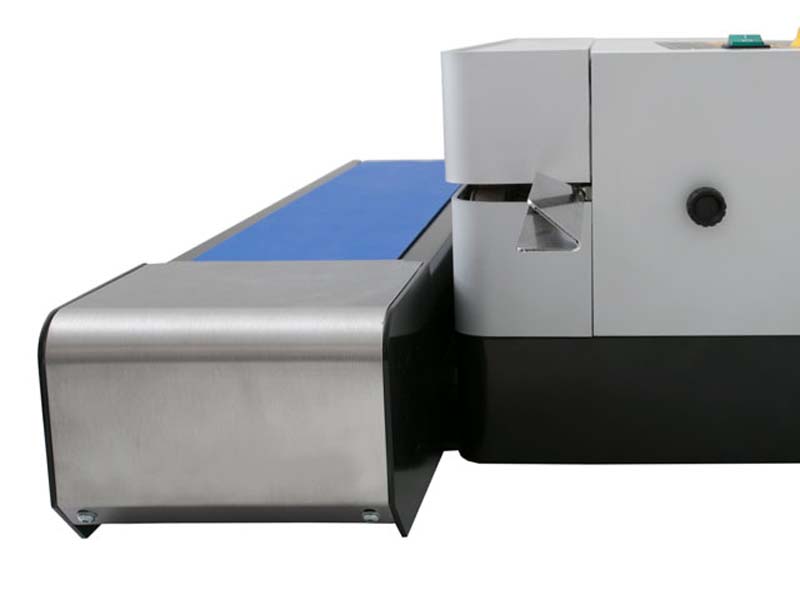

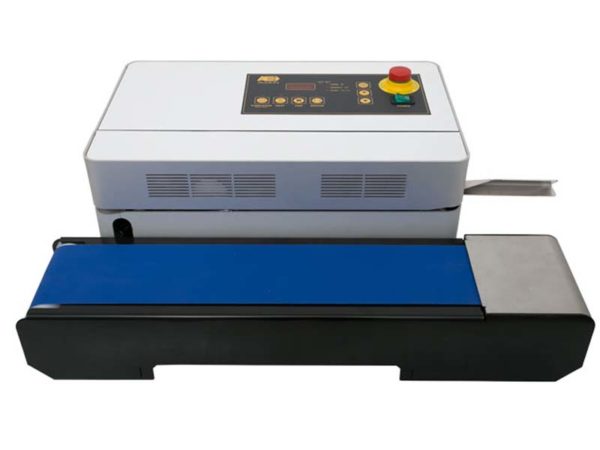

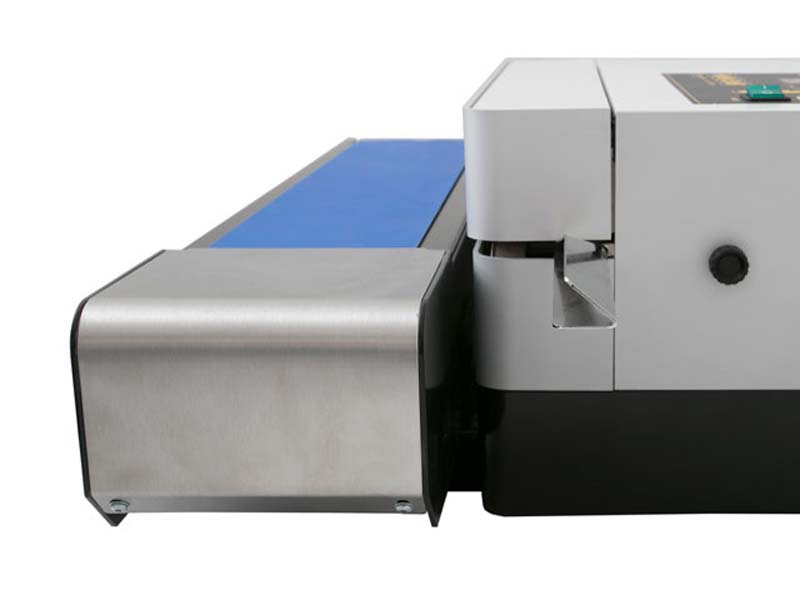

The Audion D545 AH is a continuous horizontal band sealer for pouches sealed in a horizontal position.  The D545 has the advantage of a compact modern design and is ideal for applications that require accurate control of sealing temperature for consistent seal integrity. This smart tabletop model uses pre-made bags that are sealed lying flat. The flexible D545 AH band sealer uses PTFE belts to seal polyethylene, polypropylene, and other foil laminated pouches and bags. The maximum distance between the seal and the top of the bag is 1.9 inches. This band sealer has a temperature controller with digital readout and includes an automatic cool down function.The integrated conveyor belt is adjustable in height to accommodate thin to thick packages and can be pulled out up to 2.75” towards the operator to accommodate larger products. The packages move from right to left. The industrial Audion D545 AH Horizontal Band Sealer is made in the Netherlands and includes a 3-year limited warranty.
Categories:
Supplier:

Features

Set-Up Benefits
  • Accurately  set seal temperature with digital temperature controller
  • Manually adjustable seal pressure for packaging versatility
  • Seal speed up to 400 inches/min
  • Compact machine size to fit on a table
Safety Benefits
  • Emergency stop button
  • CE compliant design
Operating Benefits
  • Adjustable bag guide
  • Requires minimal maintenance

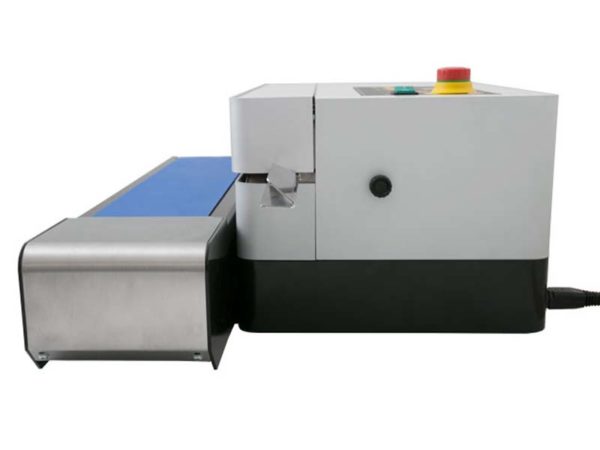

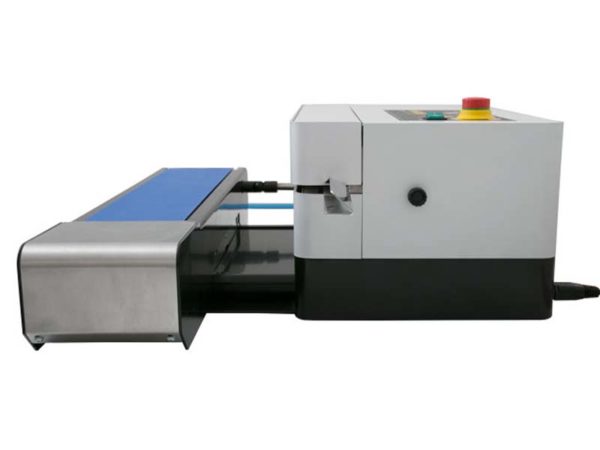

  • Adjustable conveyor can be pulled out up to 2.75” for larger packages
User Benefits
  • Flexible pouch sealing with variable seal temperature up to 480°
  • Integrated conveyor
  • Automatic cool down cycle

Specs

Model D545 AH Band Sealer
Seal Width 3/8″
Max Seal Temp up to 480º F (250° C)
Conveyor Belt Size 4.4” W x 26.4” L
Max Seal Speed Adjustable up to 400 inches/min (up to 10 meters/min)
Cooling Bar Length 4.25″
Electrical 115V
Dimensions (WxDxH) 27” x 18-22” x 10”
Weight 67 lbs
Warranty 3 year limited
Country of manufacture Netherlands
