Audion 555 Vertical Band Sealer

The Audion 555 is a continuous vertical band sealer intended for stand-up, square bottom, or gusseted pouches sealed in the vertical position. This model accommodates a wide range of bag sizes as the sealing head is crank adjustable from 31” to 44” from the floor to precisely locate the sealing position.

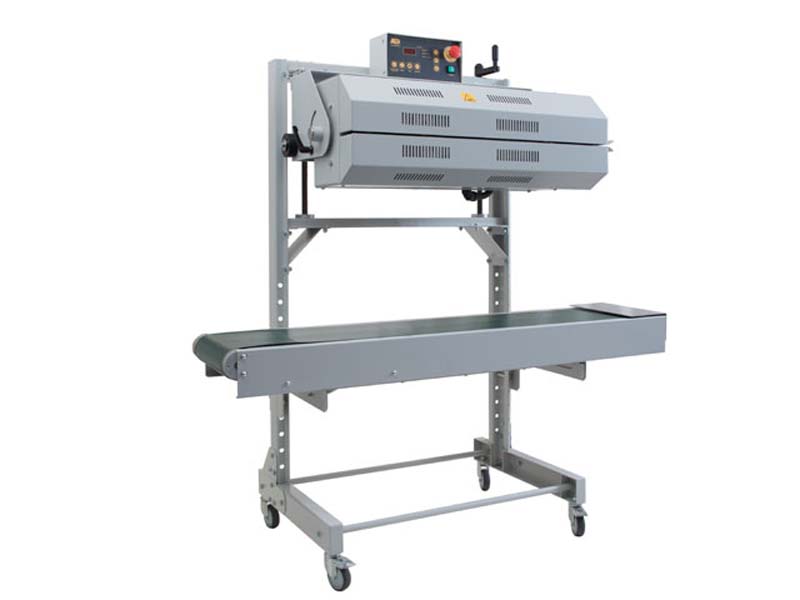

The 555 is primarily meant for vertical sealing applications but, the sealing head is easily rotated 90° to meet horizontal application requirements as well. The sealing head is adjustable and will facilitate positioning over the adjustable conveyor. Digital temperature control with adjustable speed control provides the ability to seal many different materials and thicknesses including gusseted or heavy foil pouches.

An automatic cool down cycle, when the machine is powered off, extends the life of sealing belts and components to reduce maintenance downtime. The Audion 555 vertical continuous band sealer features stainless steel construction standard with an optional hot stamp printer, inkjet printer, or embosser to meet the needs of specific applications.

The Audion 555 Vertical Band Sealer includes a 3-year limited warranty.

Leasing Options from $180/month
Categories:
Supplier:

Features

Set-Up Benefits

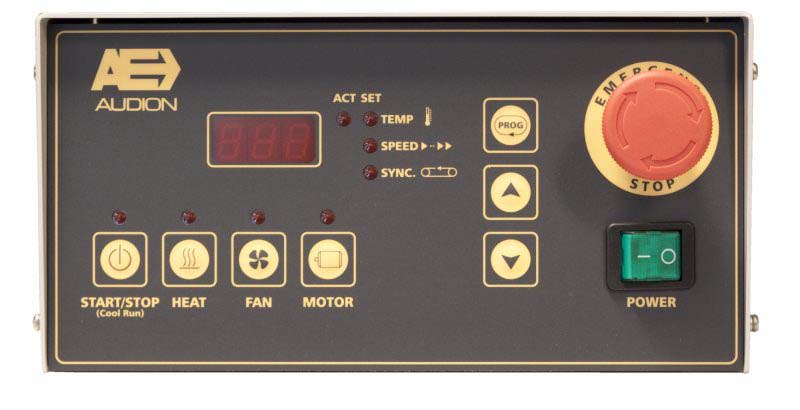

  • Quickly dial in sealing parameters with the digital interface
  • Adjustable seal pressure on pressure roller as well as heating and cooling jaws
  • Seal speed up to 400 inches/min
  • Digital temperature controller with max temperature of 480º F

User Benefits

  • Straightforward user controls help assure excellent results
  • 54″ Motorized Conveyor (22lb max weight of product on conveyor)
  • Adjustable sealing head angle for added versatility
  • Crank adjustable seal head height
  • Stainless steel construction for ease of cleaning
  • Use standing or seated

Operating Benefits

  • Precise controls for every function
  • Requires minimal maintenance
  • Ready light indicates operation within the set parameters
  • Stainless steel frame and cabinet
  • Locking casters add mobility

Safety Benefits

  • Cool run shutdown to lengthen the life of the seal belts
  • Adjustable height for improved ergonomics and ease of use
  • Emergency stop button ensures quick machine shutdown
  • CE compliant design

Specs

Model 555 Band Sealer
Seal Width 7/16″
Max Seal Temp 480º F
Max Seal Speed 400 inches/min
Heater Bar Length 6″
Cooling Bar Length 4.25″
Electrical 120V

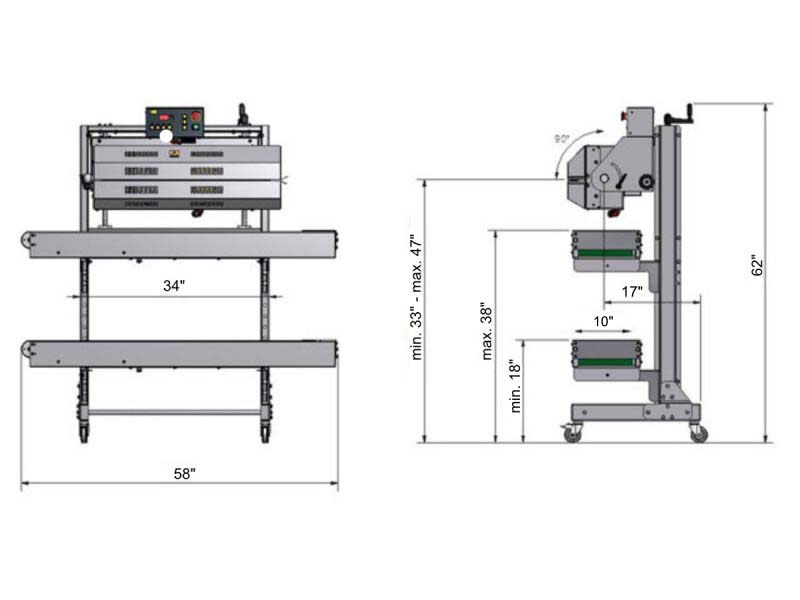

Dimensions (WxDxH) 58″ x 24″ x 62″
Weight 280 lbs
Warranty 3 year limited
Country of Manufacture Netherlands
